Grease Fittings & Nozzles

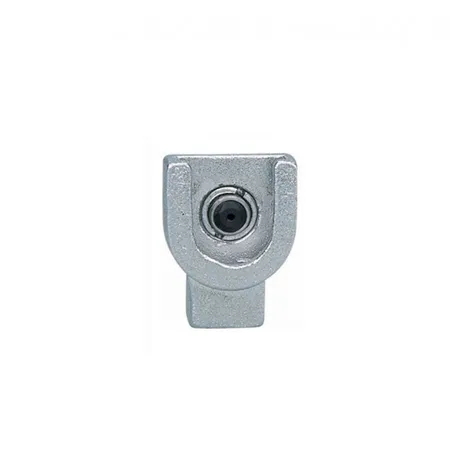

Button Head – 43563
The 43563 Button Head glides smoothly over surfaces and, thanks to its zinc die-cast construction, is commonly used on construction machinery, agricultural equipment, and heavy industrial machinery.
- Precision
Machined - Secure
Connection - Wide
Range - Robust
Design
Fittings and Nozzles
for Every Lubrication Point
The 43563 Button Head glides smoothly over surfaces and, thanks to its zinc die-cast construction, is commonly used on construction machinery, agricultural equipment, and heavy industrial machinery.
- Zinc Die-cast
Body - Smooth Surface
Slide - 250 bar
Rated - Heavy Equipment
Ready
Technical Specifications
| Model | 43563 |
|---|---|
| Code | PCN1M |
| Operating Pressure | 250 bar |
| Inlet | M10x1 |
| Construction | Zinc Die-Cast |
Materials
| Body | Steel, zinc-plated or Stainless Steel |
|---|---|
| Ball & Spring | Hardened Steel / Stainless Steel |
| Seals | NBR |
| Jaws (couplers) | Hardened Steel, 4-jaw |
| Case (sets) | Steel or impact-resistant plastic |
Applications
- Machine lubrication points
- Automotive and commercial vehicles
- Agricultural and construction machinery
- Industrial plant maintenance
Dimensions
| Type | Thread | Length (mm) | Hex (mm) |
|---|---|---|---|
| Straight fitting | M6 / M8 / M10 / ⅛" BSP | 16–20 | 7–10 |
| 45° fitting | M6 / M8 / M10 / ⅛" BSP | 20–24 | 7–10 |
| 90° fitting | M6 / M8 / M10 / ⅛" BSP | 22–26 | 7–10 |
| Button headthis model | ⅛" – ¼" BSP | 20–28 | 10–14 |
Typical dimensions for the model range; certified dimensional drawings are available on request.
