Drill-Driven Oil Pump – DRILL 25

Mechanical & Electric Oil Pumps

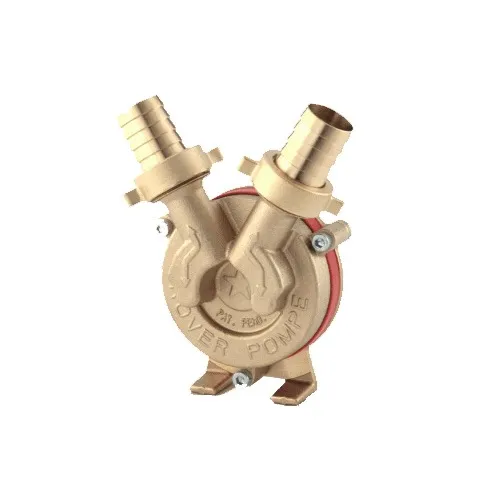

Drill-Driven Oil Pump – DRILL 25

The electric drill pump is a self-priming liquid ring pump with dual rotation direction as standard, a high-efficiency motor suitable for continuous operation and a star-geometry impeller. Its special hydraulic geometry allows the pump to operate even when there are air bubbles in the suction liquid.

  • Electric
    Drive
  • Self-
    Priming
  • Portable
    Design
  • Robust
    Design

Electric Transfer
for Oils and Liquids

The electric drill pump is a self-priming liquid ring pump with dual rotation direction as standard, a high-efficiency motor suitable for continuous operation and a star-geometry impeller. Its special hydraulic geometry allows the pump to operate even when there are air bubbles in the suction liquid.

  • High
    Flow Rate
  • Reversible
    Rotation
  • Compact
    Footprint
  • Long
    Service Life

Technical Specifications

DriveElectric hand drill (free shaft, chuck-mounted)
Max flow rate24 L/min (1.4 m³/h)
Max speed2850 rpm
ConnectionsØ 14 mm hose ports (35/64")
Pump typePeripheral (regenerative) impeller
MaterialsBronze body and bronze impeller
Max fluid temperature35 °C
Self-primingNo – fill before use
Weight2 kg
Dimensions80 × 100 × 120 mm

Materials

Pump BodyBronze, Cast Iron or Aluminium
Impeller / GearsBronze, Stainless Steel or Sintered Steel
ShaftStainless Steel
Shaft SealMechanical seal, FKM / NBR
MotorSingle-phase 230 V or 12/24 V DC, IP44–IP55
Carry Handle & BaseSteel, powder-coated

Performance Curve

05101520250510152025Flow Rate (L/min)Head (m)
  • Water (1 cSt)
  • Light oil (20 cSt)
  • Hydraulic oil (46 cSt)
  • Gear oil (150 cSt)
Indicative curves by fluid viscosity at rated voltage; check the maximum viscosity of the pump before use.

Applications

  • Oil and lubricant transfer
  • Workshop and fleet maintenance
  • Marine and agricultural applications
  • Drum and tank emptying
