Grease & Oil Guns

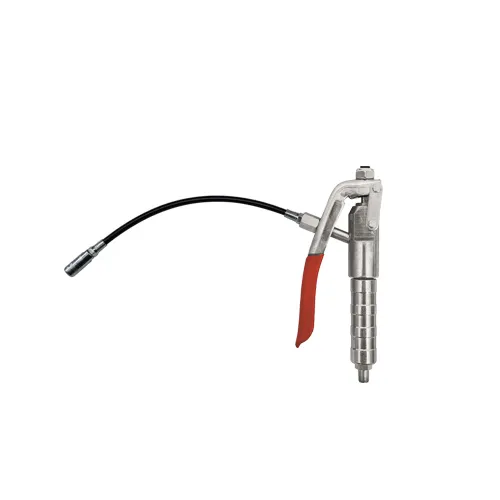

Grease Gun – 230565
We manufactured the 230565 Grease Gun to withstand demanding environments, for use with Pneumatic Grease Pumps. Compatible with any air-operated grease pump, this premium quality gun features a durable steel construction for long service life. A full trigger pull delivers continuous grease flow. The ergonomic, coated trigger ensures comfortable operation, and the ball socket shows high tolerance to grease contamination. Fine adjustment is easily made with the lock nut. Delivered complete with a spiral hose.
- Ergonomic
Grip - Controlled
Dispensing - Easy
Maintenance - Robust
Design
Precise Dispensing
at the Point of Use
We manufactured the 230565 Grease Gun to withstand demanding environments, for use with Pneumatic Grease Pumps. Compatible with any air-operated grease pump, this premium quality gun features a durable steel construction for long service life. A full trigger pull delivers continuous grease flow. The ergonomic, coated trigger ensures comfortable operation, and the ball socket shows high tolerance to grease contamination. Fine adjustment is easily made with the lock nut. Delivered complete with a spiral hose.
- Spiral Hose
Included - Universal
Compatibility - Steel
Construction - Continuous Flow
Trigger
Technical Specifications
| Model | 230565 |
|---|---|
| Operating Pressure | 560 bar |
| Inlet | 1/8" NPT |
| Outlet | M10 |
| Grease Nozzle | 4-Jaw |
| Included Accessories | Spiral Hose |
Materials
| Body | Die-cast Aluminium or Zinc Alloy |
|---|---|
| Trigger & Lever | Steel, zinc-plated |
| Seals | NBR / PU |
| Outlet Tube | Steel, rigid or flexible |
| Meter (metered models) | Oval-gear, LCD display |
| Coupler / Nozzle | Hardened Steel, 4-jaw |
Applications
- Bearing and joint lubrication
- Gearbox and engine oil top-up
- Workshop lubrication stations
- Fleet and plant maintenance
Dimensions
| Type | Length (mm) | Inlet | Outlet | Weight (kg) |
|---|---|---|---|---|
| Grease gunthis model | 330 | ¼" BSP | Hydraulic coupler | 0.9 |
| Oil gun | 300 | ½" BSP | Rigid / flexible nozzle | 0.7 |
| Metered oil gun | 320 | ½" BSP | Rigid / flexible nozzle | 1.1 |
Typical dimensions for the model range; certified dimensional drawings are available on request.
