Pump Accessories
Hoses
The table below shows the standard hose types and their specifications.
- System
Compatible - Secure
Fit - Quick
Installation - Robust
Design
Accessories for
Complete Lubrication Systems
The table below shows the standard hose types and their specifications.
- High
Pressure - Standard
Drum Sizes - Wide
Range - Long
Service Life
Technical Specifications
| Range | Oil delivery, oil suction, grease, air and multi-purpose hoses |
|---|---|
| Oil delivery hose | 1/2" to 1" ID, 20 bar working pressure (indicative) |
| Grease hose | 1/4" ID, 400 bar working pressure (indicative) |
| Air hose | 1/4" to 1/2" ID, 20 bar working pressure (indicative) |
| Materials | Rubber (NBR/SBR) or thermoplastic with textile or steel-wire reinforcement (indicative) |
| Temperature range | -30 °C to +100 °C (indicative) |
| End fittings | BSP crimped fittings, swivel options (indicative) |
| Lengths | Cut to length or standard 1–15 m assemblies (indicative) |
Materials
| Body | Steel, zinc-plated or powder-coated |
|---|---|
| Seals | NBR / PU |
| Hoses | Rubber, steel-reinforced, R1 / R2 |
| Springs | Spring Steel |

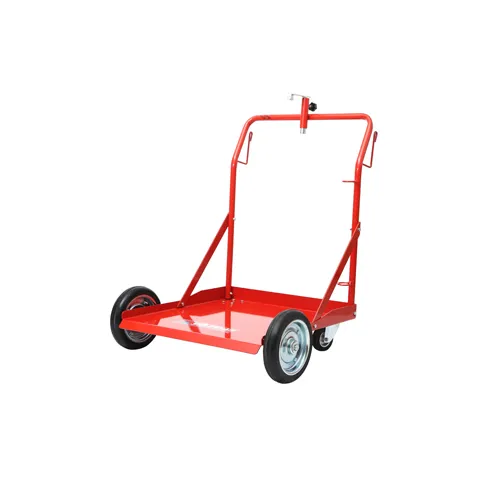

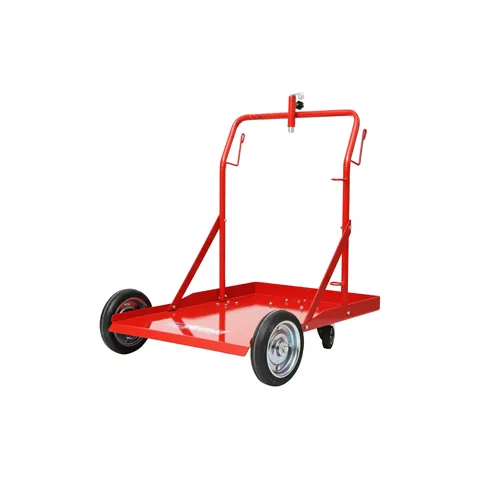

| Castors (carts) | Rubber-tyred |
Applications
- Grease and oil pump installations
- Drum and tank handling
- Wall-mounted lubrication stations
- Mobile service units
