Manual & Mechanical Grease Pumps

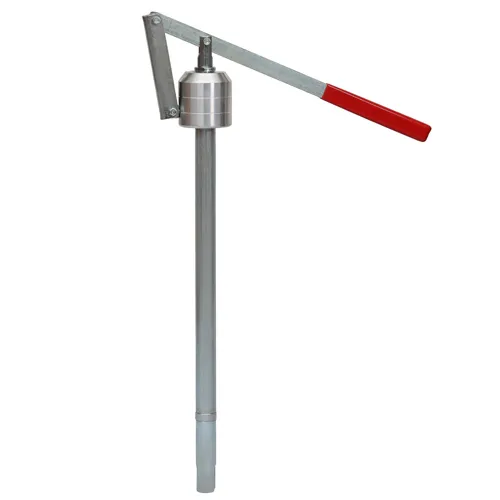

Mechanical Grease Pump 20 kg – 2025N
Ideal for short-distance high-pressure lubrication. Provides an alternative for users in places without air systems. Offers different options for industrial project-based applications.
- Manual
Operation - No Air
Required - Easy
Maintenance - Robust
Design
Manual Lubrication
Without Compressed Air
Ideal for short-distance high-pressure lubrication. Provides an alternative for users in places without air systems. Offers different options for industrial project-based applications.
- High
Pressure - Standard
Drum Sizes - Complete
Sets - Long
Service Life
Technical Specifications
| Model | 2025N |
|---|---|
| Operation Type | Manual |
| Output | 8 g/stroke |
| Pipe Length | 485 mm |
| Packaging Dimensions | 13x14x65 cm |
| Weight | 3.7 kg |
| Warranty | 36 months |
Materials
| Pump Body | Steel, zinc-plated |
|---|---|
| Piston & Rod | Hardened Steel |
| Seals | NBR / PU |
| Follower Plate & Cover | Steel, powder-coated |
| Hose | Rubber, steel-reinforced |
| Handle | Steel with ergonomic grip |
Applications
- Vehicle workshops
- Agricultural machinery
- Field service without compressed air
- Small maintenance departments
Dimensions
| Drum Size | Tube Length (mm) | Cover Ø (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|
| 10 kg | 390 | 240 | 720 | 5.5 |
| 16 kg | 420 | 270 | 770 | 6.5 |
| 20 kgthis model | 480 | 285 | 840 | 7.5 |
| 25 L | 500 | 290 | 860 | 7.8 |
Typical dimensions for the model range; certified dimensional drawings are available on request.
