Mechanical Grease Pump Pedal Type 10 kg

Manual & Mechanical Grease Pumps

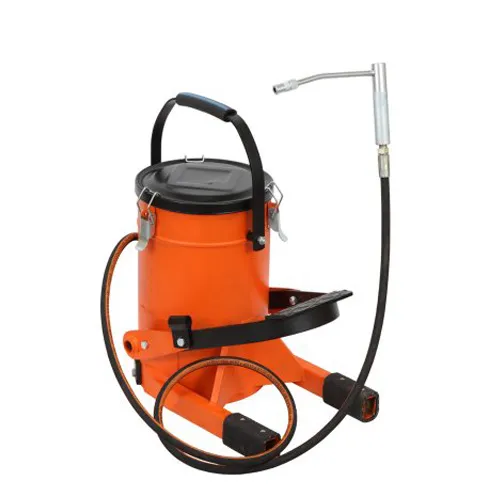

Mechanical Grease Pump Pedal Type 10 kg

The Model GG2010A Pedal-Type Mechanical Grease Pump has a 10 kg capacity and operates using a foot pedal for high-pressure lubrication — reducing operator effort to a minimum. It uses a steel wire-reinforced hydraulic hose and is ideal for short-distance, high-pressure lubrication tasks.

  • Manual
    Operation
  • No Air
    Required
  • Easy
    Maintenance
  • Robust
    Design

Manual Lubrication
Without Compressed Air

This pump is a practical alternative for locations where no compressed air system is available, offering reliable performance through simple, independent foot-operated mechanics.

  • Foot Pedal
    Operation
  • No Air
    Supply Required
  • 10 kg
    Capacity
  • 2-metre
    Hose

Technical Specifications

ModelGG2010A
Operating TypePedal-Operated
Output2 g / stroke
Capacity10 kg
Hose Length2 m
Hose SizeR1 1/4"
Packaging Dimensions48 x 34 x 43 cm
Weight12 kg
Warranty36 Months

Materials

Pump BodySteel, zinc-plated
Piston & RodHardened Steel
SealsNBR / PU
Follower Plate & CoverSteel, powder-coated
HoseRubber, steel-reinforced
HandleSteel with ergonomic grip

Applications

  • Vehicle workshops
  • Agricultural machinery
  • Field service without compressed air
  • Small maintenance departments

Dimensions

Drum SizeTube Length (mm)Cover Ø (mm)Height (mm)Weight (kg)
10 kgthis model3902407205.5
16 kg4202707706.5
20 kg4802858407.5
25 L5002908607.8

Typical dimensions for the model range; certified dimensional drawings are available on request.
