Manual & Mechanical Grease Pumps

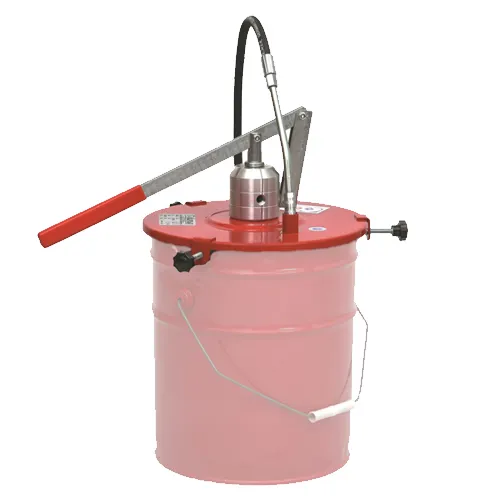

Mechanical Grease Pump Tin Type 16 kg – 2016
The Model 2016 Mechanical Grease Pump operates manually and easily mounts onto standard 16 kg grease tins for convenient portability. It uses a steel wire-reinforced hydraulic hose and is ideal for short-distance, high-pressure lubrication. The oil pressure plate and spring compress the grease inside the tin — ensuring easy pump feeding with high-viscosity greases and in cold environments.
- Manual
Operation - No Air
Required - Easy
Maintenance - Robust
Design
Manual Lubrication
Without Compressed Air
This pump is a practical alternative in locations where no compressed air system is available — offering reliable lubrication performance with zero dependency on air supply infrastructure.
- No Air
Supply Required - Tin-type
Design - Ultra-lightweight
- Manual Hand
Operation
Technical Specifications
| Model | 2016 |
|---|---|
| Operating Type | Manual (Hand-Operated) |
| Output | 8 g / stroke |
| Capacity | 16 kg (standard grease tin) |
| Hose Length | 1.5 m |
| Hose Size | R1 1/4" |
| Packaging Dimensions | 31 x 42 x 55 cm |
| Weight | 6.3 kg |
| Warranty | 36 Months |
Materials
| Pump Body | Steel, zinc-plated |
|---|---|
| Piston & Rod | Hardened Steel |
| Seals | NBR / PU |
| Follower Plate & Cover | Steel, powder-coated |
| Hose | Rubber, steel-reinforced |
| Handle | Steel with ergonomic grip |
Applications
- Vehicle workshops
- Agricultural machinery
- Field service without compressed air
- Small maintenance departments
Dimensions
| Drum Size | Tube Length (mm) | Cover Ø (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|
| 10 kg | 390 | 240 | 720 | 5.5 |
| 16 kgthis model | 420 | 270 | 770 | 6.5 |
| 20 kg | 480 | 285 | 840 | 7.5 |
| 25 L | 500 | 290 | 860 | 7.8 |
Typical dimensions for the model range; certified dimensional drawings are available on request.
