Transfer Pumps

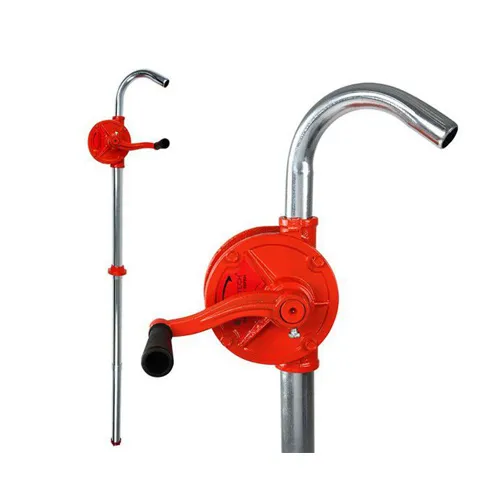

Mechanical Liquid Transfer Pump – 4003
Manual liquid transfer pump; transfers solvents, oil, diesel and other non-flammable liquids. Requiring no electricity or other power source, it is a hand-operated rotary drum transfer pump. A 2 inch drum adaptor is provided for mounting the mechanical diesel and oil transfer pump on the drum. Preferred for its ease of use, long service life, portability and low operating cost. The tube consists of three sections, making it suitable for use with containers other than standard oil drums.
- Manual
Operation - No Air
Required - Easy
Maintenance - Robust
Design
Manual Lubrication
Without Compressed Air
Manual liquid transfer pump; transfers solvents, oil, diesel and other non-flammable liquids. Requiring no electricity or other power source, it is a hand-operated rotary drum transfer pump. A 2 inch drum adaptor is provided for mounting the mechanical diesel and oil transfer pump on the drum. Preferred for its ease of use, long service life, portability and low operating cost. The tube consists of three sections, making it suitable for use with containers other than standard oil drums.
- High
Pressure - Standard
Drum Sizes - Complete
Sets - Long
Service Life
Technical Specifications
| Model | 4003 |
|---|---|
| Operation Type | Manual |
| Output | 250 ml / stroke |
| Capacity | 208 L |
| Outlet | 3/4″ |
| Packaging Dimensions | 13x16x34 cm |
| Weight | 4.45 kg |
| Warranty | 24 months |
Materials
| Pump Body | Steel, zinc-plated |
|---|---|
| Piston & Rod | Hardened Steel |
| Seals | NBR / PU |
| Follower Plate & Cover | Steel, powder-coated |
| Hose | Rubber, steel-reinforced |
| Handle | Steel with ergonomic grip |
Applications
- Vehicle workshops
- Agricultural machinery
- Field service without compressed air
- Small maintenance departments
