Pneumatic Grease Pumps

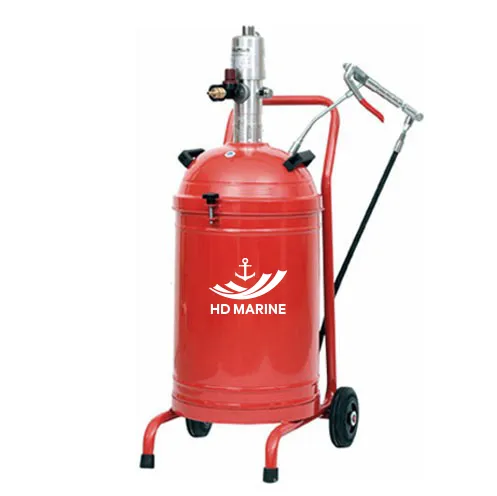

Pneumatic Grease Pump 30 kg – 2430
The Model 2430 Pneumatic Grease Pump is an air-operated grease pump with a 45:1 pressure ratio and a 30 kg grease capacity. Ideal for short-distance, high-pressure lubrication. Its special chassis allows easier transport over rough or uneven terrain. The pump comes with a 3-metre steel wire-reinforced hydraulic hose, an air regulator, and an air coupling included as standard. Piston diameter is Ø62 mm.
- Air
Operated - High
Pressure Ratio - Easy
Maintenance - Robust
Design
Powerful Lubrication
for Workshop and Industry
The oil pressure plate and spring compress the grease inside the reservoir — ensuring consistent feeding with high-viscosity greases and in cold environments. The Z-swivel joint at the grease gun inlet allows comfortable hose and gun handling. Operating pressure ranges from 6 to 8 bar. Use filtered and lubricated air to maximise performance and service life.
- 30 kg
Capacity - Special Terrain
Chassis - 3-metre
Hose - Ø62 mm
Piston
Technical Specifications
| Model | 2430 |
|---|---|
| Operating Type | Pneumatic (Air-Operated) |
| Operating Pressure | 6 – 8 bar |
| Pressure Ratio | 45:1 |
| Output | 1400 g/min |
| Capacity | 30 kg |
| Piston Diameter | Ø62 mm |
| Hose Length | 3 m |
| Hose Size | R2 1/4" |
| Included Accessories | Air regulator + Air coupling |
| Packaging Dimensions | 48 x 50 x 104 cm |
| Weight | 22.9 kg |
| Warranty | 36 Months |
Materials
| Air Motor Body | Die-cast Aluminium |
|---|---|
| Pump Tube | Steel, zinc-plated |
| Piston & Rod | Hardened Steel, chrome-plated |
| Seals | NBR / PU |
| Follower Plate & Cover | Steel, powder-coated |
| Hose | Rubber, steel-reinforced, R2 |
Delivery Curve
- 45:1 – 8 bar
- 45:1 – 6 bar
- 45:1 – 4 bar
Dimensions
| Drum Size | Tube Length (mm) | Cover Ø (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|
| 10 kg | 390 | 240 | 730 | 7.5 |
| 16 kg | 420 | 270 | 780 | 8.5 |
| 20 kg | 480 | 285 | 850 | 10 |
| 30 kgthis model | 560 | 320 | 950 | 12 |
| 50 kg | 740 | 390 | 1,140 | 18.7 |
| 180 kg | 940 | 590 | 1,400 | 28 |
Typical dimensions for the model range; certified dimensional drawings are available on request.
