Pneumatic Grease Pumps

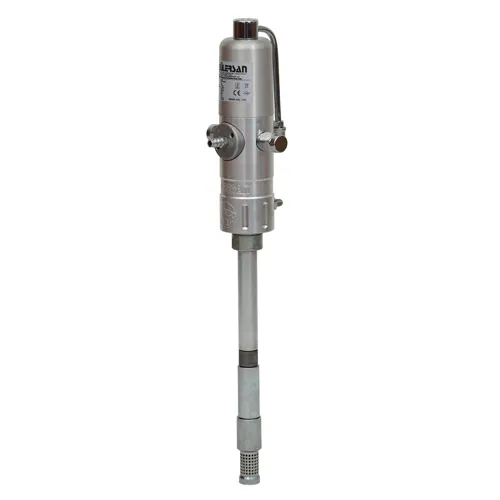

Pneumatic Grease Pump 45:1 – 2110N
This pneumatic grease pump offers a 45:1 pressure ratio. Ideal for short-distance high-pressure lubrication. The piston diameter is Ø62 mm. Operating pressure varies between minimum 6 bar and maximum 8 bar. Use filtered and lubricated air to increase pump performance and service life. Offers different options for project-based industrial applications.
- Air
Operated - High
Pressure Ratio - Easy
Maintenance - Robust
Design
Powerful Lubrication
for Workshop and Industry
This pneumatic grease pump offers a 45:1 pressure ratio. Ideal for short-distance high-pressure lubrication. The piston diameter is Ø62 mm. Operating pressure varies between minimum 6 bar and maximum 8 bar. Use filtered and lubricated air to increase pump performance and service life. Offers different options for project-based industrial applications.
- Double-Acting
Piston - Continuous
Duty - Complete
Sets - Standard
Drum Sizes
Technical Specifications
| Model | 2110N |
|---|---|
| Operation Type | Pneumatic |
| Operating Pressure | 6 – 8 bar |
| Pressure Ratio | 45:1 |
| Output | 1400 g/min |
| Pipe Length | 310 mm |
| Packaging Dimensions | 13x14x65 cm |
| Weight | 5 kg |
| Warranty | 36 months |
Materials
| Air Motor Body | Die-cast Aluminium |
|---|---|
| Pump Tube | Steel, zinc-plated |
| Piston & Rod | Hardened Steel, chrome-plated |
| Seals | NBR / PU |
| Follower Plate & Cover | Steel, powder-coated |
| Hose | Rubber, steel-reinforced, R2 |
Delivery Curve
- Pneumatic – 8 bar
- Pneumatic – 6 bar
- Pneumatic – 4 bar
Applications
- Vehicle and truck workshops
- Agricultural and construction machinery service
- Industrial maintenance departments
- Mining and quarry equipment
- Marine and port equipment
- Centralised lubrication stations
