Pneumatic Grease Pumps

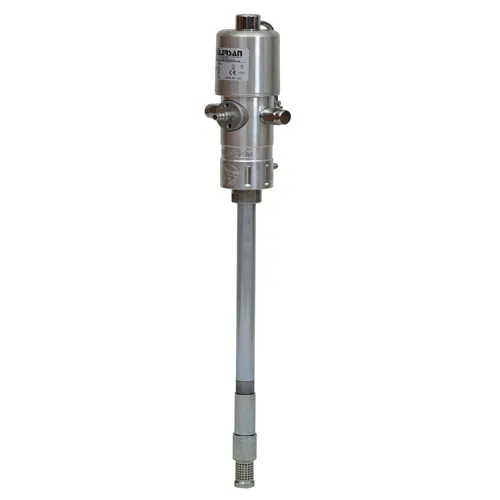

Pneumatic Grease Pump 70:1 – 2300N
Use this grease pump for your long-distance lubrication needs. Achieve high performance with a 70:1 pressure ratio. The piston diameter is 75 mm. Operating pressure is between 6 and 8 bar. Use filtered and lubricated air for best performance and long service life. We offer different options for industrial projects.
- Air
Operated - High
Pressure Ratio - Easy
Maintenance - Robust
Design
Powerful Lubrication
for Workshop and Industry
Use this grease pump for your long-distance lubrication needs. Achieve high performance with a 70:1 pressure ratio. The piston diameter is 75 mm. Operating pressure is between 6 and 8 bar. Use filtered and lubricated air for best performance and long service life. We offer different options for industrial projects.
- Double-Acting
Piston - Continuous
Duty - Complete
Sets - Standard
Drum Sizes
Technical Specifications
| Model | 2300N |
|---|---|
| Operation Type | Pneumatic |
| Operating Pressure | 6 – 8 bar |
| Pressure Ratio | 70:1 |
| Output | 1100 g/min |
| Pipe Length | 472 mm |
| Packaging Dimensions | 13x14x80 cm |
| Weight | 5.2 kg |
| Warranty | 36 months |
Materials
| Air Motor Body | Die-cast Aluminium |
|---|---|
| Pump Tube | Steel, zinc-plated |
| Piston & Rod | Hardened Steel, chrome-plated |
| Seals | NBR / PU |
| Follower Plate & Cover | Steel, powder-coated |
| Hose | Rubber, steel-reinforced, R2 |
Delivery Curve
- Pneumatic – 8 bar
- Pneumatic – 6 bar
- Pneumatic – 4 bar
Applications
- Vehicle and truck workshops
- Agricultural and construction machinery service
- Industrial maintenance departments
- Mining and quarry equipment
- Marine and port equipment
- Centralised lubrication stations
