Pneumatic Grease Pumps

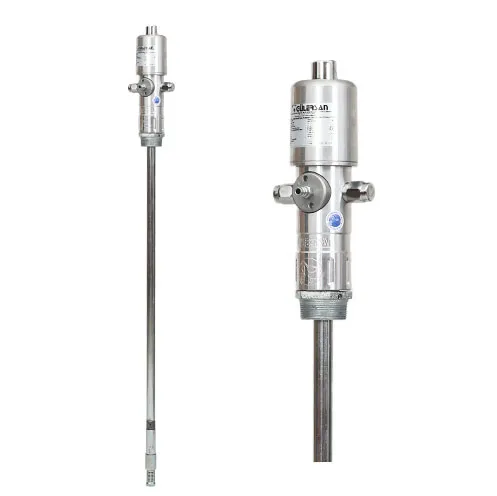

Pneumatic Grease Pump Drum Type 45:1 – 2450
The Model 2450 Pneumatic Grease Pump is a drum-type air-operated grease pump with a 45:1 pressure ratio. It easily mounts onto standard 185 kg grease drums using a drum lid. Ideal for short-distance, high-pressure lubrication. The piston diameter is Ø62 mm. The oil pressure plate and weight compress the grease inside the drum — ensuring consistent pump feeding with high-viscosity greases and in cold environments.
- Air
Operated - High
Pressure Ratio - Easy
Maintenance - Robust
Design
Powerful Lubrication
for Workshop and Industry
Operating pressure ranges from 6 to 8 bar. Use filtered and lubricated air to maximise performance and service life. Optional accessories further enhance functionality — accessories for this model are selected separately based on system requirements.
- 185 kg
Drum Capacity - Ø62 mm
Piston - Drum Lid
Mounting - Pressure Plate
& Weight
Technical Specifications
| Model | 2450 |
|---|---|
| Operating Type | Pneumatic (Air-Operated) |
| Operating Pressure | 6 – 8 bar |
| Pressure Ratio | 45:1 |
| Output | 1400 g/min |
| Capacity | 185 kg (standard grease drum) |
| Piston Diameter | Ø62 mm |
| Outlet | 1/8" NPT |
| Hose | Not included — select separately |
| Packaging Dimensions | 13 x 14 x 128 cm |
| Weight | 7 kg |
| Warranty | 36 Months |
Materials
| Air Motor Body | Die-cast Aluminium |
|---|---|
| Pump Tube | Steel, zinc-plated |
| Piston & Rod | Hardened Steel, chrome-plated |
| Seals | NBR / PU |
| Follower Plate & Cover | Steel, powder-coated |
| Hose | Rubber, steel-reinforced, R2 |
Delivery Curve
- 45:1 – 8 bar
- 45:1 – 6 bar
- 45:1 – 4 bar
Applications
- Vehicle and truck workshops
- Agricultural and construction machinery service
- Industrial maintenance departments
- Mining and quarry equipment
- Marine and port equipment

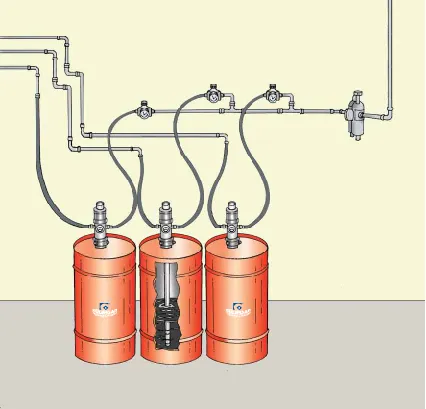

- Centralised lubrication stations
