Manual & Mechanical Grease Pumps

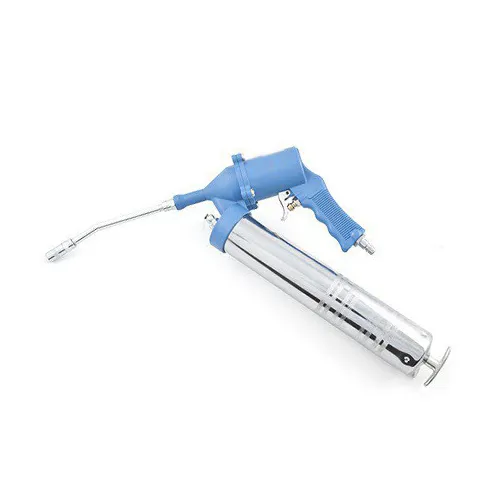

Pneumatic Hand Grease Pump – HEGP500
The pneumatic hand grease pump is ideal for light agricultural, automotive and industrial applications. We include the grease nozzle and spiral hose with the product.
- Air
Operated - High
Pressure Ratio - Easy
Maintenance - Robust
Design
Powerful Lubrication
for Workshop and Industry
The pneumatic hand grease pump is ideal for light agricultural, automotive and industrial applications. We include the grease nozzle and spiral hose with the product.
- Double-Acting
Piston - Continuous
Duty - Complete
Sets - Standard
Drum Sizes
Technical Specifications
| Model | HEGP500 |
|---|---|
| Operation Type | Pneumatic |
| Capacity | 400 cc |
| Air Consumption | 60 L/min |
| Air Inlet | 1/4″ |
| Operating Pressure | 6 – 8 bar |
| Weight | 450 g |
| Packaging Dimensions | 17x6x40 cm |
| Warranty | 24 months |
Materials
| Air Motor Body | Die-cast Aluminium |
|---|---|
| Pump Tube | Steel, zinc-plated |
| Piston & Rod | Hardened Steel, chrome-plated |
| Seals | NBR / PU |
| Follower Plate & Cover | Steel, powder-coated |
| Hose | Rubber, steel-reinforced, R2 |
Delivery Curve
- Pneumatic – 8 bar
- Pneumatic – 6 bar
- Pneumatic – 4 bar
Applications
- Vehicle and truck workshops
- Agricultural and construction machinery service
- Industrial maintenance departments
- Mining and quarry equipment
- Marine and port equipment
- Centralised lubrication stations
