Oil Drain & Waste Oil

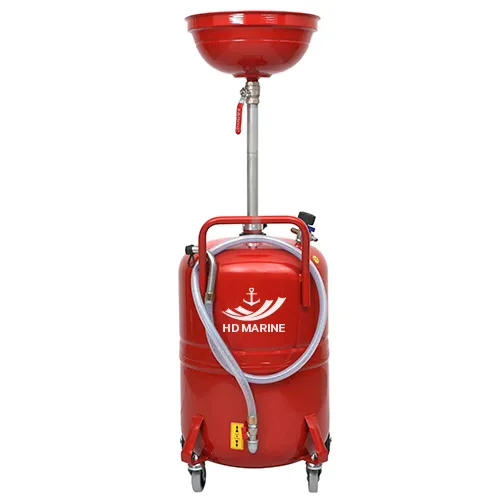

Pneumatic Oil Drain Tank 60 L – 4260

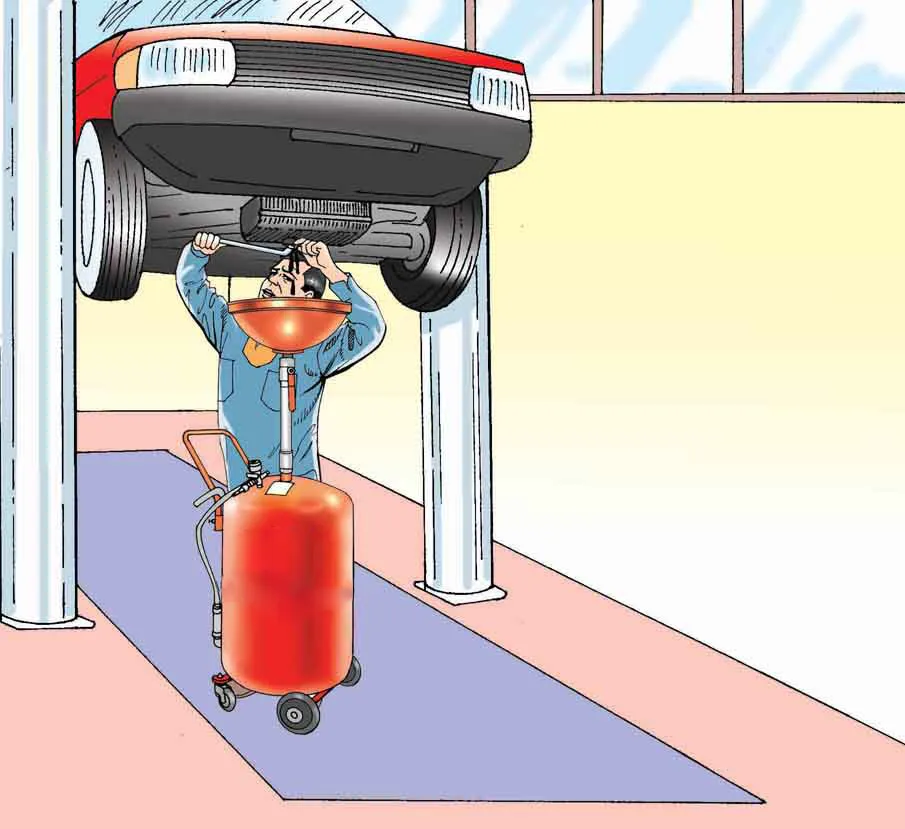

The pneumatic oil drain tank is designed for collecting waste oil drained from engines and gearboxes. Waste oil is collected into the tank via the telescopic funnel, and the volume of used oil can be monitored on the tank gauge. The tank has a usable capacity of 60 L. Thanks to the telescopic funnel, it can be used with the vehicle raised on a lift and the drain plug removed. Two fixed and two swivel wheels provide high manoeuvrability. Waste oil is discharged from the tank using compressed air. A safety valve on the tank provides protection against excessive air pressure. Do not use with corrosive or flammable liquids.
- Waste Oil
Collection - Spill
Protection - Mobile
Design - Robust
Design
Safe Collection
of Used Oil
The pneumatic oil drain tank is designed for collecting waste oil drained from engines and gearboxes. Waste oil is collected into the tank via the telescopic funnel, and the volume of used oil can be monitored on the tank gauge. The tank has a usable capacity of 60 L. Thanks to the telescopic funnel, it can be used with the vehicle raised on a lift and the drain plug removed. Two fixed and two swivel wheels provide high manoeuvrability. Waste oil is discharged from the tank using compressed air. A safety valve on the tank provides protection against excessive air pressure. Do not use with corrosive or flammable liquids.
- Large
Capacity - Level
Indication - Pneumatic
Emptying - Long
Service Life
Technical Specifications
| Model | 4260 |
|---|---|
| Operation Type | Pneumatic |
| Discharge Pressure | 0.5 bar |
| Capacity | 60 L |
| Hose Length | 1.5 m |
| Hose Size | 3/4″ |
| Packaging Dimensions | 48x50x114 cm |
| Weight | 23.5 kg |
| Warranty | 36 months |
Materials
| Tank / Pan | Steel sheet, powder-coated, or HDPE |
|---|---|
| Funnel | Steel, powder-coated |
| Wheels | Rubber-tyred castors |
| Valves & Fittings | Brass |
| Level Gauge (where fitted) | Polycarbonate sight tube |
Applications
- Vehicle service bays
- Truck and bus workshops
- Industrial machine maintenance
- Waste oil collection
