Pneumatic Oil Drain Tank Heavy Duty 80 L – 4295

Oil Drain & Waste Oil

Pneumatic Oil Drain Tank Heavy Duty 80 L – 4295

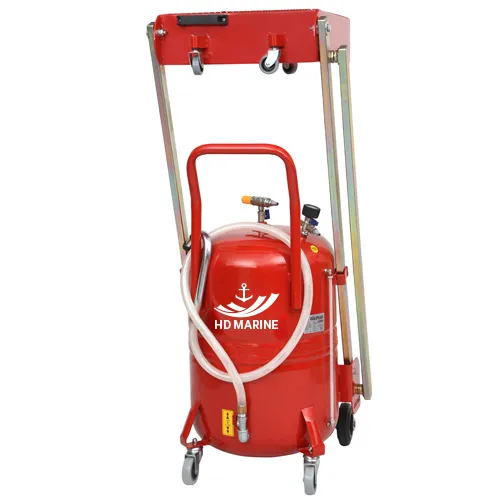

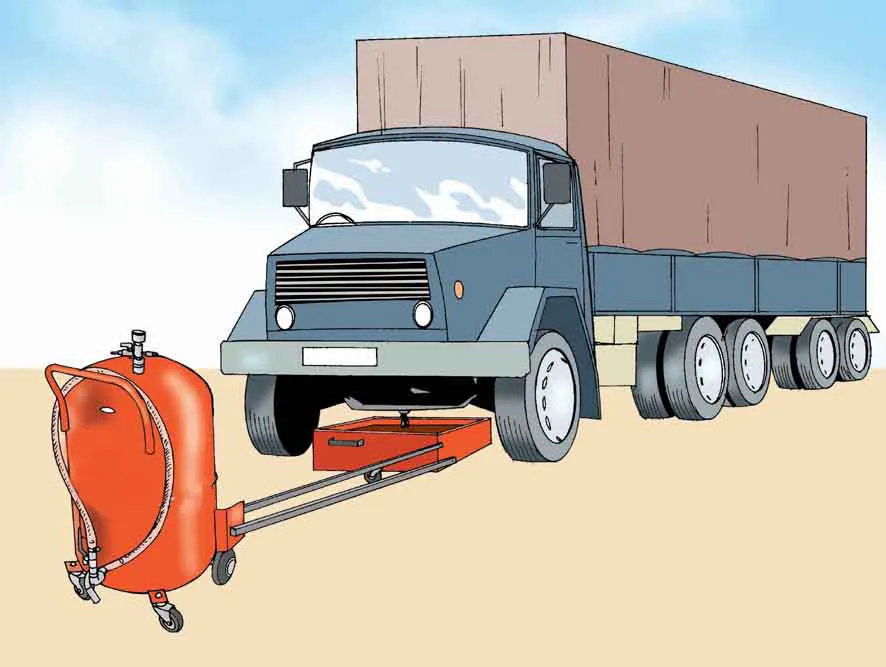

With the pneumatic telescopic oil drain pan, you collect waste oil draining from the engine and gearbox. With this telescopic oil tank, you can collect oil without lifting vehicles off the ground. Slide the telescopic arms under the vehicle and drain the oil into the pan. From there, the oil is drawn into the tank using air. The pan includes a grid that prevents oil splashing. You can monitor the amount of used oil on the tank scale. The tank offers a usable capacity of 80 litres. Two fixed and two swivel wheels give it high mobility. Waste oil in the tank is emptied using air. A safety valve on the tank protects against excessive air pressure. Do not use it with corrosive or flammable liquids.

  • Waste Oil
    Collection
  • Spill
    Protection
  • Mobile
    Design
  • Robust
    Design

Safe Collection
of Used Oil

With the pneumatic telescopic oil drain pan, you collect waste oil draining from the engine and gearbox. With this telescopic oil tank, you can collect oil without lifting vehicles off the ground. Slide the telescopic arms under the vehicle and drain the oil into the pan. From there, the oil is drawn into the tank using air. The pan includes a grid that prevents oil splashing. You can monitor the amount of used oil on the tank scale. The tank offers a usable capacity of 80 litres. Two fixed and two swivel wheels give it high mobility. Waste oil in the tank is emptied using air. A safety valve on the tank protects against excessive air pressure. Do not use it with corrosive or flammable liquids.

  • Large
    Capacity
  • Level
    Indication
  • Pneumatic
    Emptying
  • Long
    Service Life

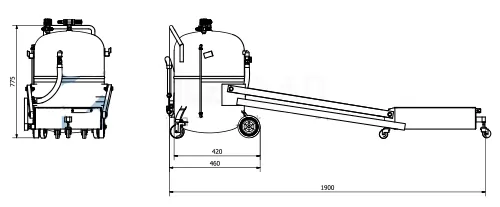

Technical Specifications

Model4295.20
Operation TypePneumatic
Discharge Pressure0.5 bar
Tank Capacity80 L
Pan Capacity20 L
Hose Length1.5 m
Hose Size3/4″
Packaging Dimensions57x67x127 cm
Weight40.4 kg

Materials

Tank / PanSteel sheet, powder-coated, or HDPE
FunnelSteel, powder-coated
WheelsRubber-tyred castors
Valves & FittingsBrass
Level Gauge (where fitted)Polycarbonate sight tube

Applications

  • Vehicle service bays
  • Truck and bus workshops
  • Industrial machine maintenance
  • Waste oil collection
