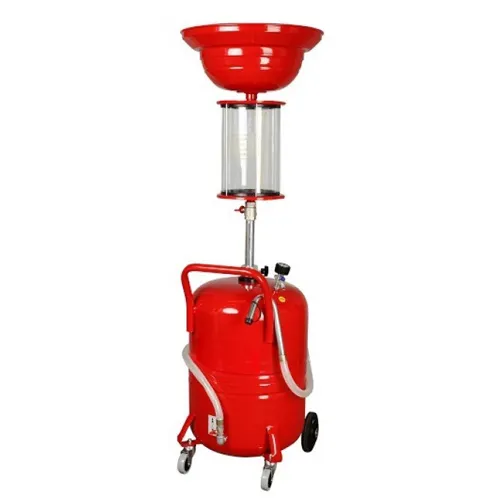

Pneumatic Oil Drain Tank with Gauge 80 L – 42909
The next-generation pneumatic oil drain tank with gauge collects waste oil drained from the engine and gearbox. Thanks to the telescopic funnel, it is used with the vehicle raised on a lift and the drain plug removed; the glass sight bowl and scale on the funnel show the amount of waste oil collected, so it can be easily recorded. The tank has a usable capacity of 80 L and the sight bowl 9 L. Two fixed and two swivel wheels provide high mobility. Waste oil is emptied from the tank using air. A safety valve on the tank protects against excessive air pressure. Do not use with corrosive or flammable liquids.
- Waste Oil
Collection - Spill
Protection - Mobile
Design - Robust
Design
Safe Collection
of Used Oil
The next-generation pneumatic oil drain tank with gauge collects waste oil drained from the engine and gearbox. Thanks to the telescopic funnel, it is used with the vehicle raised on a lift and the drain plug removed; the glass sight bowl and scale on the funnel show the amount of waste oil collected, so it can be easily recorded. The tank has a usable capacity of 80 L and the sight bowl 9 L. Two fixed and two swivel wheels provide high mobility. Waste oil is emptied from the tank using air. A safety valve on the tank protects against excessive air pressure. Do not use with corrosive or flammable liquids.
- Large
Capacity - Level
Indication - Pneumatic
Emptying - Long
Service Life
Technical Specifications
| Model | 42909 |
|---|---|
| Operation Type | Pneumatic |
| Discharge Pressure | 0.5 bar |
| Capacity | 80+9 L |
| Hose Length | 1.5 m |
| Hose Size | 3/4″ |
| Packaging Dimensions | 57x67x139 cm |
| Weight | 33 kg |
| Warranty | 36 months |
Materials
| Tank / Pan | Steel sheet, powder-coated, or HDPE |
|---|---|
| Funnel | Steel, powder-coated |
| Wheels | Rubber-tyred castors |
| Valves & Fittings | Brass |
| Level Gauge (where fitted) | Polycarbonate sight tube |
Applications
- Vehicle service bays
- Truck and bus workshops
- Industrial machine maintenance
- Waste oil collection
