Pressure Paint Tanks
Pressure Paint Tank 10 L
Pressure paint tanks are professional paint equipment that store paint, varnish, and coating materials under pressure and feed them directly to the spray system. They provide more balanced, efficient, and faster paint application, particularly in large-surface painting, series production lines, and high-volume projects.
- Regulated
Pressure - CE / PED
Compliant - Agitator
Options - Robust
Design
Pressure-Fed Supply
for Continuous Spraying
Pressure paint tanks are professional paint equipment that store paint, varnish, and coating materials under pressure and feed them directly to the spray system. They provide more balanced, efficient, and faster paint application, particularly in large-surface painting, series production lines, and high-volume projects.
- Consistent Paint
Flow - High
Output - Faster
Application - Durable
Construction
Technical Specifications
| Product Type | Pressurised Paint Tank |
|---|---|
| Capacity | 10 – 120 L |
| Maximum Pressure | 7 – 20 bar |
| Material | Stainless Steel / Aluminium |
| Lid Type | Sealed T Lid / Clamped |
| Inlet / Outlet Connection | ½” – 1¼” BSP |
| Application Area | Industrial & Marine Paint |
| Accessories | Pressure gauge, suction filter |
| Operating Temperature | -10°C – +60°C |
Materials
| Tank Body | Carbon Steel, zinc-plated, or Stainless Steel 304 |
|---|---|
| Lid & Clamps | Cast Aluminium / Steel |
| Inner Liner | Removable Stainless Steel or PE |
| Regulators & Gauges | Brass, Ø 40 mm gauges |
| Safety Valve | Brass, set at max. working pressure |
| Seals | NBR / PTFE |
Applications
- Industrial production facilities
- Metal structure painting
- Ship and marine equipment painting lines
- Workshop and factory applications
- Roll and continuous dressing production lines
Dimensions
| Capacity | Diameter (mm) | Height (mm) | Outlet | Weight (kg) |
|---|---|---|---|---|
| 2 L | 150 | 300 | ⅜" BSP | 3.5 |
| 10 Lthis model | 240 | 430 | ⅜" BSP | 9 |
| 20 L | 300 | 520 | ⅜" BSP | 13 |
| 40 L | 380 | 640 | ½" BSP | 20 |
| 60 L | 400 | 800 | ½" BSP | 26 |
| 80 L | 450 | 860 | ½" BSP | 32 |
Typical dimensions for the model range; certified dimensional drawings are available on request.
Downloads
Related Products

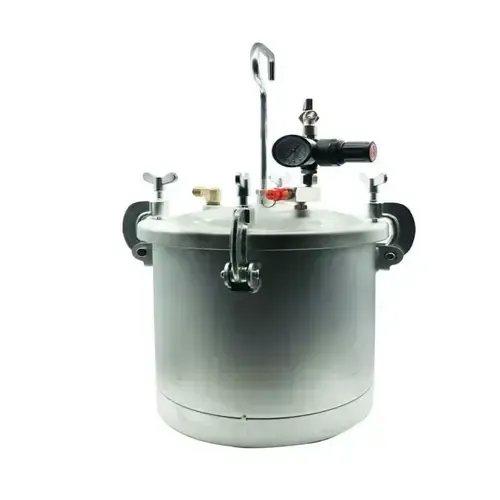

Pressure Paint Tank 10 L EcoPressure Paint Tanks
Pressure Paint Tank 2 LPressure Paint Tanks

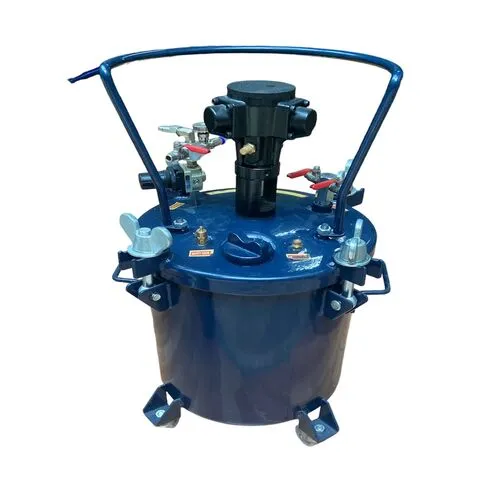

Pressure Paint Tank 20 LPressure Paint Tanks
Pressure Paint Tank 40 LPressure Paint Tanks
Pressure Paint Tank 60 LPressure Paint Tanks
Pressure Paint Tank 80 LPressure Paint Tanks

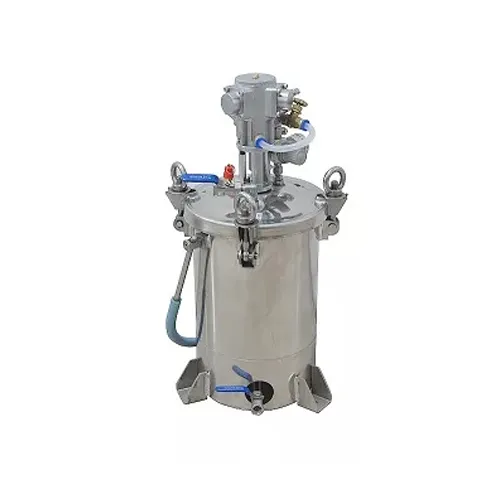

Stainless Pressure Paint Tank 10 LPressure Paint Tanks

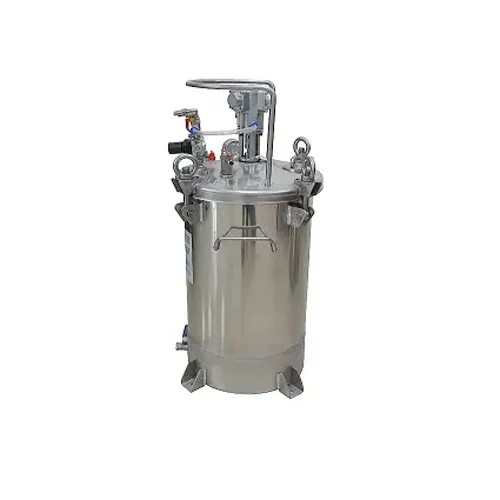

Stainless Pressure Paint Tank 40 LPressure Paint Tanks
