Electric Pallet Oil Transfer Pump – MARINA 25

Mechanical & Electric Oil Pumps

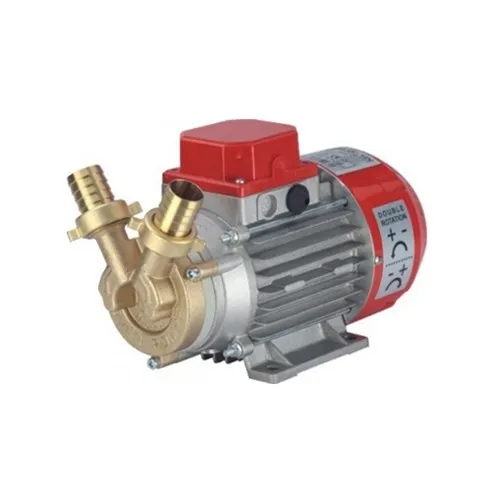

Electric Pallet Oil Transfer Pump – MARINA 25

The classic self-priming electric liquid transfer pump offers a wide range of applications. Its motor is bidirectional; you can run it left and right. The pump and motor unit is compact, so you can carry it easily. It mainly transfers liquids such as wine, must, salt water, drinking water, milk, oil and kerosene.

  • Electric
    Drive
  • Self-
    Priming
  • Portable
    Design
  • Robust
    Design

Electric Transfer
for Oils and Liquids

The classic self-priming electric liquid transfer pump offers a wide range of applications. Its motor is bidirectional; you can run it left and right. The pump and motor unit is compact, so you can carry it easily. It mainly transfers liquids such as wine, must, salt water, drinking water, milk, oil and kerosene.

  • High
    Flow Rate
  • Reversible
    Rotation
  • Compact
    Footprint
  • Long
    Service Life

Technical Specifications

Flow rate50 L/min (3 m³/h)
Motor power0.45 kW brush DC motor
Voltage12 V or 24 V DC
Max head24 m
Speed3000 rpm
ConnectionsØ 25 mm hose ports
Pump typeSelf-priming liquid-ring (star impeller)
MaterialsBronze pump body
Weight7 kg
Dimensions230 × 120 × 190 mm

Materials

Pump BodyBronze, Cast Iron or Aluminium
Impeller / GearsBronze, Stainless Steel or Sintered Steel
ShaftStainless Steel
Shaft SealMechanical seal, FKM / NBR
MotorSingle-phase 230 V or 12/24 V DC, IP44–IP55
Carry Handle & BaseSteel, powder-coated

Performance Curve

061218243001020304050Flow Rate (L/min)Head (m)
  • Water (1 cSt)
  • Light oil (20 cSt)
  • Hydraulic oil (46 cSt)
  • Gear oil (150 cSt)
Indicative curves by fluid viscosity at rated voltage; check the maximum viscosity of the pump before use.

Applications

  • Oil and lubricant transfer
  • Workshop and fleet maintenance
  • Marine and agricultural applications
  • Drum and tank emptying
