Mechanical & Electric Oil Pumps

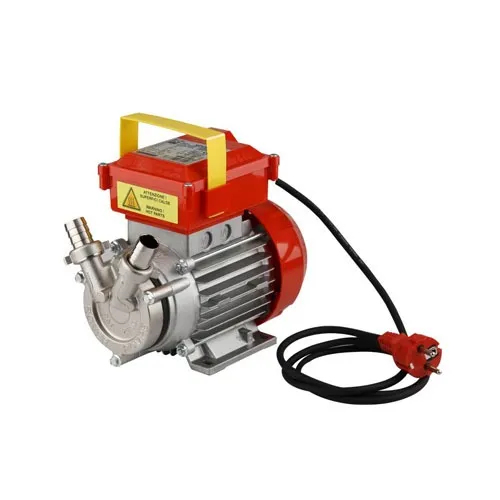

Electric Pallet Oil Transfer Pump – NOVAX 20B
The most important feature of the Novax series oil transfer pump is its Viton seals, resistant to temperatures up to 95°. It is a semi-professional self-priming liquid ring pump with dual rotation direction as standard and a high-efficiency motor designed for continuous duty. It is made using special NOVAX technology. You can use the pump to transfer any clean liquid that is not chemically aggressive or abrasive, at a maximum temperature of 95°.
- Electric
Drive - Self-
Priming - Portable
Design - Robust
Design
Electric Transfer
for Oils and Liquids
The most important feature of the Novax series oil transfer pump is its Viton seals, resistant to temperatures up to 95°. It is a semi-professional self-priming liquid ring pump with dual rotation direction as standard and a high-efficiency motor designed for continuous duty. It is made using special NOVAX technology. You can use the pump to transfer any clean liquid that is not chemically aggressive or abrasive, at a maximum temperature of 95°.
- High
Flow Rate - Reversible
Rotation - Compact
Footprint - Long
Service Life
Technical Specifications
| Flow rate | 28 L/min (1.7 m³/h) |
|---|---|
| Motor power | 0.37 kW |
| Voltage | 230 V 50 Hz single-phase, reversible |
| Max head | 27 m |
| Speed | 2850 rpm |
| Connections | Ø 20 mm hose ports |
| Pump type | Self-priming liquid-ring (star impeller) |
| Materials | AISI 304 stainless-steel body, Viton seal |
| Max fluid temperature | 95 °C |
| Weight | 5 kg |
| Dimensions | 230 × 120 × 190 mm |
Materials
| Pump Body | Bronze, Cast Iron or Aluminium |
|---|---|
| Impeller / Gears | Bronze, Stainless Steel or Sintered Steel |
| Shaft | Stainless Steel |
| Shaft Seal | Mechanical seal, FKM / NBR |
| Motor | Single-phase 230 V or 12/24 V DC, IP44–IP55 |
| Carry Handle & Base | Steel, powder-coated |
Performance Curve
- Water (1 cSt)
- Light oil (20 cSt)
- Hydraulic oil (46 cSt)
- Gear oil (150 cSt)
Applications
- Oil and lubricant transfer
- Workshop and fleet maintenance
- Marine and agricultural applications
- Drum and tank emptying
