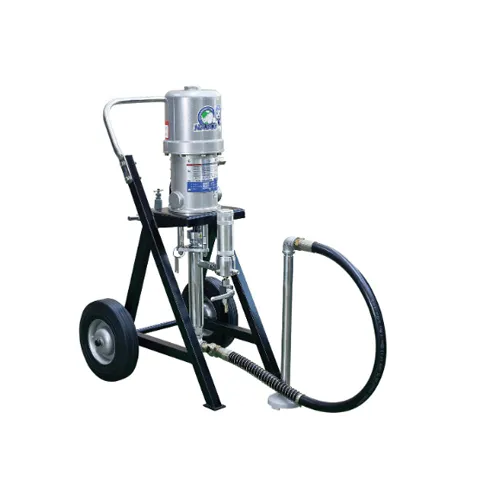

HASCO 28:1

Airless Paint Machines

HASCO 28:1

The HASCO 28:1 is a professional airless paint machine designed for versatile, mid-pressure coating applications. With a 28:1 pressure ratio, it provides reliable performance across a wide range of standard industrial paints, primers, and decorative coatings — without the use of compressed air.

  • Airless
    Spray
  • High
    Pressure
  • Easy
    Maintenance
  • Wide
    Application

High-Output Airless
Spraying for Professionals

The HASCO 28:1 is a professional airless paint machine designed for versatile, mid-pressure coating applications. With a 28:1 pressure ratio, it provides reliable performance across a wide range of standard industrial paints, primers, and decorative coatings — without the use of compressed air.

  • High-pressure Airless
    System
  • Fast, Even
    Coverage
  • Low Paint
    Waste
  • Flexible
    Voltage

Technical Specifications

Brand / ModelHASCO 28:1
Operating PrincipleAirless (high-pressure) spray
Pressure Ratio28:1
Maximum Pressure200 – 300 bar
Flow Rate1.5 – 6 l/min
Motor Power800 – 3000 W
Voltage220V / 380V
Inlet Diameter½" – 1"
Hose Length10 – 30 m
Nozzle Range0.015 – 0.035 inch
Weight20 – 60 kg

Materials

Fluid SectionStainless Steel with Tungsten Carbide balls and seats
Piston RodChrome-plated Steel
PackingsPTFE / UHMW-PE, leather
Frame / CartSteel, powder-coated
HoseHigh-pressure nylon, 250–500 bar
GunForged Aluminium, Tungsten Carbide tip

Output Curve

024680612182430Spray Pressure (bar)Material Output (L/min)
  • Tip 0.035"
  • Tip 0.027"
  • Tip 0.021"
  • Tip 0.015"
Indicative output by tip size; actual output depends on material viscosity and hose length.

Dimensions

Model ClassLength (mm)Width (mm)Height (mm)Weight (kg)
Portable electric48038044018–25
Cart electric64052076035–60
Pneumatic 28:1 – 30:16005601,05045–55
Pneumatic 68:17006201,25075–95

Typical dimensions for the model range; certified dimensional drawings are available on request.
