Industrial Pumps

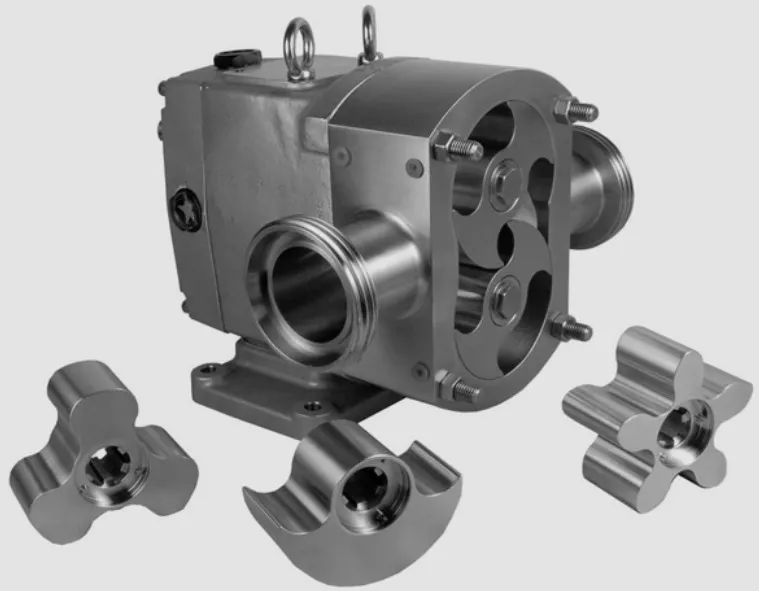

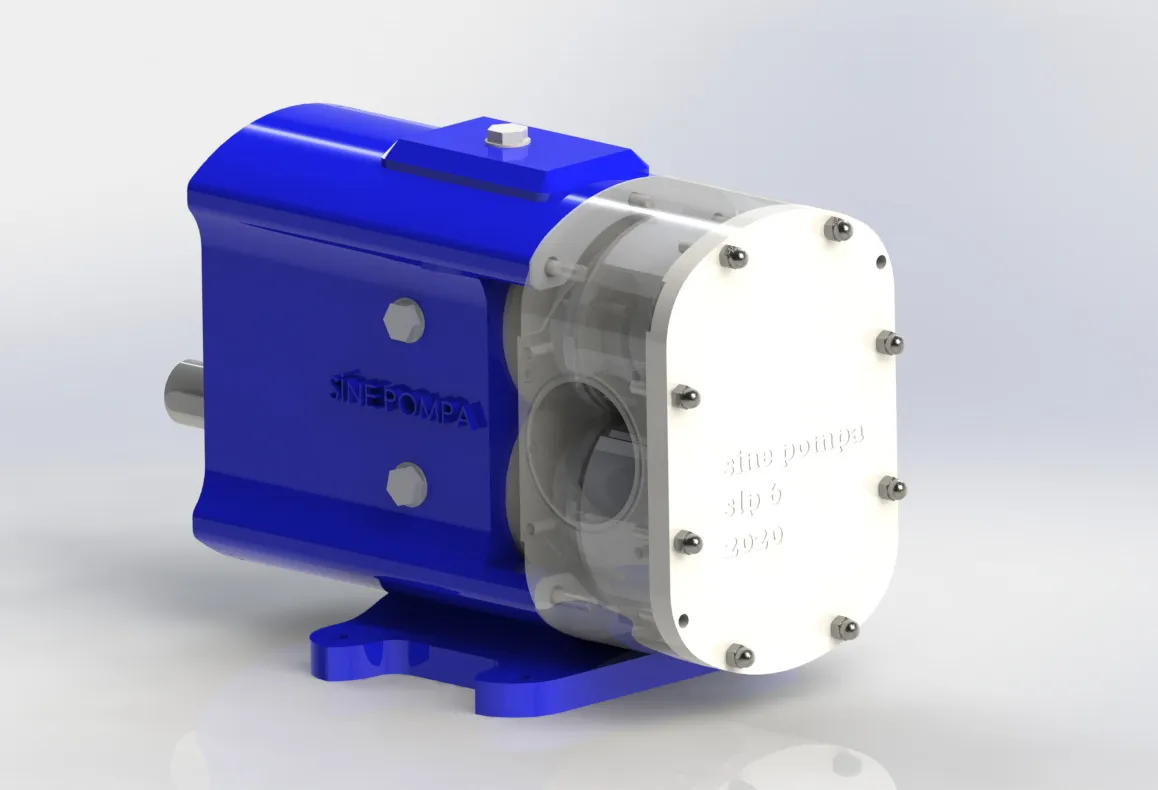

Lobe Pump

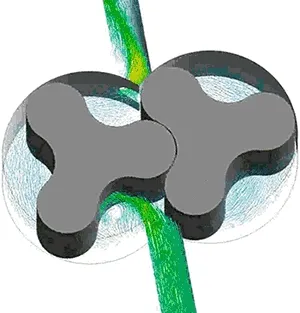

The lobe pump (rotary lobe pump) is a positive displacement pump consisting of lobed rotors. This design provides low shear, high efficiency, and precise flow control. Lobe pumps are the ideal solution for conveying viscous liquids, particle-laden fluids, and sensitive products without damage.
- Hygienic
Design - Low
Shear - CIP / SIP
Cleanable - Wide
Application
Hygienic, Low-Shear
Product Transfer
FlowLand lobe pumps offer uninterrupted liquid transfer in industrial facilities, marine applications, and production lines — thanks to their durable housing and superior performance.
- High
Performance - Product
Safety - Easy
Maintenance - Wide Application
Compatibility
Technical Specifications
| Pump Type | Rotary Lobe (Sine-Lobe) |
|---|---|
| Flow Rate Range | 1 – 400 m³/h |
| Maximum Pressure | 12 – 20 bar |
| Viscosity Compatibility | 1 – 1,000,000 cP |
| Motor Power | 0.55 – 22 kW |
| Housing Material | Stainless Steel |
| Connection Type | Flanged / Threaded |
| Operating Temperature | -10°C / +150°C |
Materials
| Pump Head & Rotor Case | Stainless Steel AISI 316L, Ra ≤ 0.8 µm |
|---|---|
| Rotors | Stainless Steel 316L or non-galling alloy |
| Shafts | Duplex Stainless Steel |
| Seals | Single / double mechanical seal, SiC/SiC, EPDM or FKM elastomers |
| Gearbox | Cast iron, oil-lubricated timing gears |
| Connections | DIN 11851, Tri-Clamp, SMS or flanged |
Performance Curve
- 600 rpm
- 450 rpm
- 300 rpm
- 150 rpm
Dimensions
| Size | Connections | Length (mm) | Width (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|
| LP 10 | DN 25 | 560 | 260 | 300 | 45 |
| LP 25 | DN 40 | 680 | 300 | 340 | 70 |
| LP 50 | DN 50 | 820 | 340 | 390 | 115 |
| LP 100 | DN 80 | 1,050 | 420 | 470 | 210 |
Typical dimensions for the model range; certified dimensional drawings are available on request.
