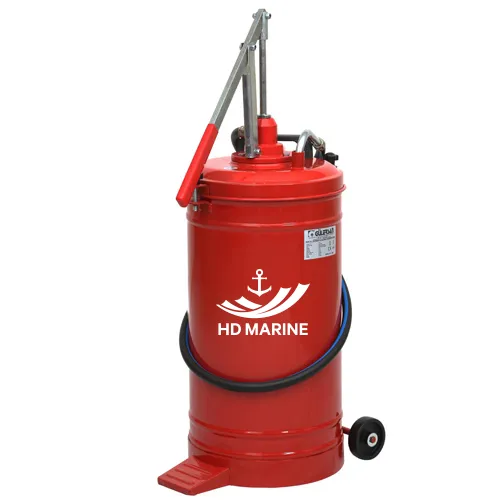

Mechanical Oil Pump 25 L – 4025

Mechanical & Electric Oil Pumps

Mechanical Oil Pump 25 L – 4025

The Model 4025 Mechanical Oil Pump has a 25-litre capacity and is used for topping up gearbox and differential oils. It features a ½" fabric-reinforced hose and two wheels for easy transport. The foot pedal keeps the pump stable during operation — providing great convenience wherever no compressed air system is available.

  • Manual
    Operation
  • No Air
    Required
  • Easy
    Maintenance
  • Robust
    Design

Manual Lubrication
Without Compressed Air

The Model 4025 Mechanical Oil Pump has a 25-litre capacity and is used for topping up gearbox and differential oils. It features a ½" fabric-reinforced hose and two wheels for easy transport. The foot pedal keeps the pump stable during operation — providing great convenience wherever no compressed air system is available.

  • 25-litre
    Capacity
  • No Air
    Supply Required
  • 250 ml
    Per Stroke
  • Foot Pedal
    Stability

Technical Specifications

Model4025
Operating TypeManual (Hand-Operated)
Output250 ml / stroke
Capacity25 L
Hose Length1.5 m
Hose Size½"
Hose TypeFabric-reinforced
Packaging Dimensions31 x 42 x 84 cm
Weight9.3 kg
Warranty36 Months

Materials

Pump BodySteel, zinc-plated
Piston & RodHardened Steel
SealsNBR / PU
Follower Plate & CoverSteel, powder-coated
HoseRubber, steel-reinforced
HandleSteel with ergonomic grip

Applications

  • Vehicle workshops
  • Agricultural machinery
  • Field service without compressed air
  • Small maintenance departments

Dimensions

Drum SizeTube Length (mm)Cover Ø (mm)Height (mm)Weight (kg)
10 kg3902407205.5
16 kg4202707706.5
20 kg4802858407.5
25 Lthis model5002908607.8

Typical dimensions for the model range; certified dimensional drawings are available on request.
