Grease & Oil Guns

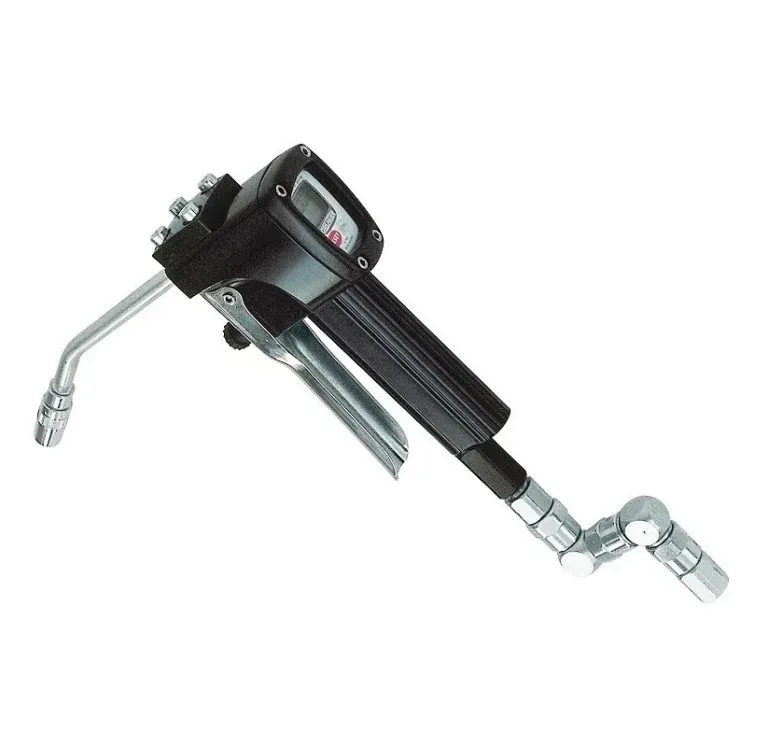

Metered Grease Gun – 2306P
We designed the 2306P Metered Grease Gun by combining a grease gun with an oval gear measurement system, creating a weight-measuring counter. The LCD display shows the exact amount of grease pumped — instantly and precisely. The counter includes a resettable job total and a non-resettable grand total. Thanks to its compact size and lightweight build, it can be used with pneumatic, electric, or hydraulic lubrication equipment as a standard grease gun replacement. This gun is an ideal solution for jobs requiring highly precise and cost-controlled lubrication.
- Ergonomic
Grip - Controlled
Dispensing - Easy
Maintenance - Robust
Design

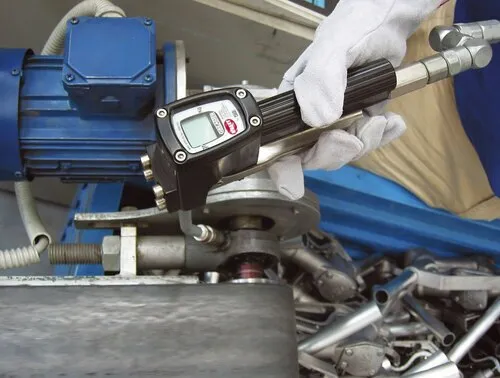

Precise Dispensing
at the Point of Use
We designed the 2306P Metered Grease Gun by combining a grease gun with an oval gear measurement system, creating a weight-measuring counter. The LCD display shows the exact amount of grease pumped — instantly and precisely. The counter includes a resettable job total and a non-resettable grand total. Thanks to its compact size and lightweight build, it can be used with pneumatic, electric, or hydraulic lubrication equipment as a standard grease gun replacement. This gun is an ideal solution for jobs requiring highly precise and cost-controlled lubrication.
- LCD
Display - ±3%
Accuracy - Oval Gear
Metering System - Resettable Job
Total
Technical Specifications
| Model | 2306P |
|---|---|
| Operating Pressure | 560 bar |
| Inlet | 1/4" BSP |
| Outlet | M10 |
| Grease Nozzle | 4-Jaw |
| Accuracy | ±3% |
| Battery | 1.5 V |
| Warranty | 24 Months |
Materials
| Body | Die-cast Aluminium or Zinc Alloy |
|---|---|
| Trigger & Lever | Steel, zinc-plated |
| Seals | NBR / PU |
| Outlet Tube | Steel, rigid or flexible |
| Meter (metered models) | Oval-gear, LCD display |
| Coupler / Nozzle | Hardened Steel, 4-jaw |
Applications
- Bearing and joint lubrication
- Gearbox and engine oil top-up
- Workshop lubrication stations
- Fleet and plant maintenance
Dimensions
| Type | Length (mm) | Inlet | Outlet | Weight (kg) |
|---|---|---|---|---|
| Grease gunthis model | 330 | ¼" BSP | Hydraulic coupler | 0.9 |
| Oil gun | 300 | ½" BSP | Rigid / flexible nozzle | 0.7 |
| Metered oil gun | 320 | ½" BSP | Rigid / flexible nozzle | 1.1 |
Typical dimensions for the model range; certified dimensional drawings are available on request.
