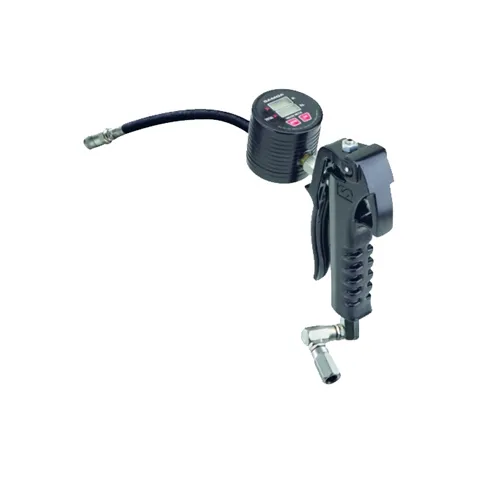

Metered Grease Gun – 2306S
With the 2306S Metered Grease Gun, you can instantly and precisely see the amount of grease dispensed on its LCD display. The counter includes a resettable job total and a non-resettable grand total. Thanks to its compact size and lightweight design, it can be used as a direct replacement for a standard grease gun — and is also compatible with pneumatic, electric, or hydraulic lubrication equipment. It is an ideal choice for high-cost and precision-critical lubrication tasks.
- Ergonomic
Grip - Controlled
Dispensing - Easy
Maintenance - Robust
Design
Precise Dispensing
at the Point of Use
With the 2306S Metered Grease Gun, you can instantly and precisely see the amount of grease dispensed on its LCD display. The counter includes a resettable job total and a non-resettable grand total. Thanks to its compact size and lightweight design, it can be used as a direct replacement for a standard grease gun — and is also compatible with pneumatic, electric, or hydraulic lubrication equipment. It is an ideal choice for high-cost and precision-critical lubrication tasks.
- ±2%
Accuracy - LCD
Display - Resettable Job
Total - Non-resettable Grand
Total
Technical Specifications
| Model | 2306S |
|---|---|
| Operating Pressure | 560 bar |
| Inlet | 1/8" NPT |
| Outlet | M10 |
| Grease Nozzle | 4-Jaw |
| Accuracy | ±2% |
| Battery | 1.5 V |
| Warranty | 24 Months |
Materials
| Body | Die-cast Aluminium or Zinc Alloy |
|---|---|
| Trigger & Lever | Steel, zinc-plated |
| Seals | NBR / PU |
| Outlet Tube | Steel, rigid or flexible |
| Meter (metered models) | Oval-gear, LCD display |
| Coupler / Nozzle | Hardened Steel, 4-jaw |
Applications
- Bearing and joint lubrication
- Gearbox and engine oil top-up
- Workshop lubrication stations
- Fleet and plant maintenance
Dimensions
| Type | Length (mm) | Inlet | Outlet | Weight (kg) |
|---|---|---|---|---|
| Grease gunthis model | 330 | ¼" BSP | Hydraulic coupler | 0.9 |
| Oil gun | 300 | ½" BSP | Rigid / flexible nozzle | 0.7 |
| Metered oil gun | 320 | ½" BSP | Rigid / flexible nozzle | 1.1 |
Typical dimensions for the model range; certified dimensional drawings are available on request.
