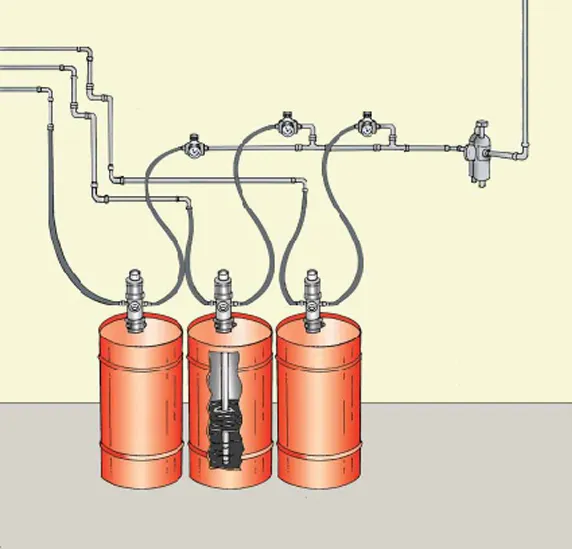

Pneumatic Fixed Grease Drum System – DVS2500

Drum, IBC & Tank Systems

Pneumatic Fixed Grease Drum System – DVS2500

Various versions of wall-mounted fixed grease drum systems are available. Pump options with various outputs and pressure ratios, hose reels with hose lengths of up to 20 metres, and metered grease guns that can be added to the system on request give the system high working capability. Since every business has different needs, these systems offer an excellent solution. Grease drum systems consist of 9 standard parts, but you can choose your grease pump, grease gun and grease hose length.

  • Air
    Operated
  • High
    Pressure Ratio
  • Easy
    Maintenance
  • Robust
    Design

Powerful Lubrication
for Workshop and Industry

Various versions of wall-mounted fixed grease drum systems are available. Pump options with various outputs and pressure ratios, hose reels with hose lengths of up to 20 metres, and metered grease guns that can be added to the system on request give the system high working capability. Since every business has different needs, these systems offer an excellent solution. Grease drum systems consist of 9 standard parts, but you can choose your grease pump, grease gun and grease hose length.

  • Double-Acting
    Piston
  • Continuous
    Duty
  • Complete
    Sets
  • Standard
    Drum Sizes

Technical Specifications

Drum size180–200 kg grease drum (indicative)
PumpPneumatic piston grease pump, 50:1 ratio (indicative)
Deliveryapprox. 800–1000 g/min (indicative)
Air supply6–8 bar (indicative)
Max grease pressure400 bar (indicative)
Follower plateØ 590 mm with wiper seal (indicative)
Drum coverSteel cover for Ø 590 mm drum (indicative)
Hose and gun4 m × 1/4" grease hose with Z-swivel control gun (indicative)
Grease gradesNLGI 0–2 (indicative)
MountingFixed, drum stands on floor

Materials

Air Motor BodyDie-cast Aluminium
Pump TubeSteel, zinc-plated
Piston & RodHardened Steel, chrome-plated
SealsNBR / PU
Follower Plate & CoverSteel, powder-coated
HoseRubber, steel-reinforced, R2

Delivery Curve

03006009001,2000246810Hose Length (m)Delivery (g/min)
  • 8 bar air
  • 6 bar air
  • 4 bar air
Indicative delivery through a ¼" hose at 4–8 bar air inlet pressure and 20 °C, NLGI 2 grease; longer hoses and colder lubricant reduce output.

Applications

  • Vehicle and truck workshops
  • Agricultural and construction machinery service
  • Industrial maintenance departments
  • Mining and quarry equipment
  • Marine and port equipment
  • Centralised lubrication stations
