Pneumatic Oil Pump 80 L – 4200

Pneumatic Oil Pumps

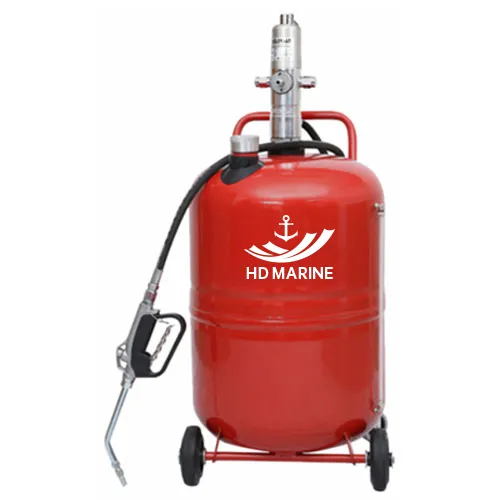

Pneumatic Oil Pump 80 L – 4200

The pneumatic thin oil pump offers an ideal combination for oil refilling in any working environment (gearbox, differential, engine, machinery). It has a 3:1 pressure ratio and transfers low-, medium-, and high-viscosity oils over medium and long distances. Operating pressure varies between minimum 6 bar and maximum 8 bar. Use filtered and lubricated air to increase the performance and service life of pneumatic oil pumps. The piston diameter is Ø62 mm. Optional accessories enhance functionality.

  • Air
    Operated
  • High
    Pressure Ratio
  • Easy
    Maintenance
  • Robust
    Design

Powerful Lubrication
for Workshop and Industry

The pneumatic thin oil pump offers an ideal combination for oil refilling in any working environment (gearbox, differential, engine, machinery). It has a 3:1 pressure ratio and transfers low-, medium-, and high-viscosity oils over medium and long distances. Operating pressure varies between minimum 6 bar and maximum 8 bar. Use filtered and lubricated air to increase the performance and service life of pneumatic oil pumps. The piston diameter is Ø62 mm. Optional accessories enhance functionality.

  • Double-Acting
    Piston
  • Continuous
    Duty
  • Complete
    Sets
  • Standard
    Drum Sizes

Technical Specifications

Model4200
Operation TypePneumatic
Operating Pressure6-8 bar
Pressure Ratio3:1
Output15 L/min
Capacity80 L
Hose Length3 m
Hose SizeR1-3/8″
Packaging Dimensions48x49x113 cm
Weight28.30 kg
Warranty36 months

Materials

Air Motor BodyDie-cast Aluminium
Pump TubeSteel, zinc-plated
Piston & RodHardened Steel, chrome-plated
SealsNBR / PU
Follower Plate & CoverSteel, powder-coated
HoseRubber, steel-reinforced, R2

Delivery Curve

051015200246810Hose Length (m)Delivery (L/min)
  • Pneumatic – 8 bar
  • Pneumatic – 6 bar
  • Pneumatic – 4 bar
Indicative delivery through a ¼" hose at 4–8 bar air inlet pressure and 20 °C; longer hoses and colder lubricant reduce output.

Dimensions

Drum SizeTube Length (mm)Cover Ø (mm)Height (mm)Weight (kg)
10 kg3902407307.5
16 kg4202707808.5
20 kg48028585010
30 kgthis model56032095012
50 kg7403901,14018.7
180 kg9405901,40028

Typical dimensions for the model range; certified dimensional drawings are available on request.
