Pneumatic Oil Pump Drum Type 3:1 22 L – 4455

Pneumatic Oil Pumps

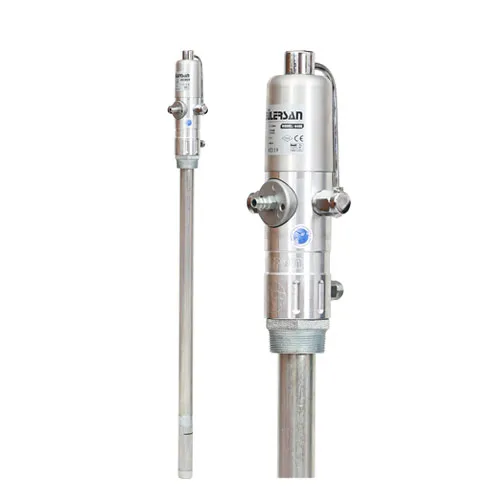

Pneumatic Oil Pump Drum Type 3:1 22 L – 4455

The drum-type pneumatic oil pump with 3:1 pressure ratio transfers low, medium and high viscosity oils over medium and long distances. The output of the pneumatic oil pump varies with application and configuration. It is affected by the supplied air pressure and by the viscosity and temperature of the fluid. Hose and connection sizes and the gun type also determine output. Operating pressure varies between minimum 6 bar and maximum 8 bar. Use filtered and lubricated air to increase the performance and service life of the air-operated drum-type oil pump. The piston diameter is Ø62 mm. Optional accessories enhance functionality.

  • Air
    Operated
  • High
    Pressure Ratio
  • Easy
    Maintenance
  • Robust
    Design

Powerful Lubrication
for Workshop and Industry

The drum-type pneumatic oil pump with 3:1 pressure ratio transfers low, medium and high viscosity oils over medium and long distances. The output of the pneumatic oil pump varies with application and configuration. It is affected by the supplied air pressure and by the viscosity and temperature of the fluid. Hose and connection sizes and the gun type also determine output. Operating pressure varies between minimum 6 bar and maximum 8 bar. Use filtered and lubricated air to increase the performance and service life of the air-operated drum-type oil pump. The piston diameter is Ø62 mm. Optional accessories enhance functionality.

  • Double-Acting
    Piston
  • Continuous
    Duty
  • Complete
    Sets
  • Standard
    Drum Sizes

Technical Specifications

Model4455
Operation TypePneumatic
Operating Pressure6-8 bar
Pressure Ratio3:1
Output22 L/min
Capacity208 L Standard Oil Drum
Outlet1/2″
Packaging Dimensions13x14x118 cm
Weight7.38 kg
Warranty36 months

Materials

Air Motor BodyDie-cast Aluminium
Pump TubeSteel, zinc-plated
Piston & RodHardened Steel, chrome-plated
SealsNBR / PU
Follower Plate & CoverSteel, powder-coated
HoseRubber, steel-reinforced, R2

Delivery Curve

05101520250246810Hose Length (m)Delivery (L/min)
  • Pneumatic – 8 bar
  • Pneumatic – 6 bar
  • Pneumatic – 4 bar
Indicative delivery through a ¼" hose at 4–8 bar air inlet pressure and 20 °C; longer hoses and colder lubricant reduce output.

Applications

  • Vehicle and truck workshops
  • Agricultural and construction machinery service
  • Industrial maintenance departments
  • Mining and quarry equipment
  • Marine and port equipment
  • Centralised lubrication stations
