Grease & Oil Guns

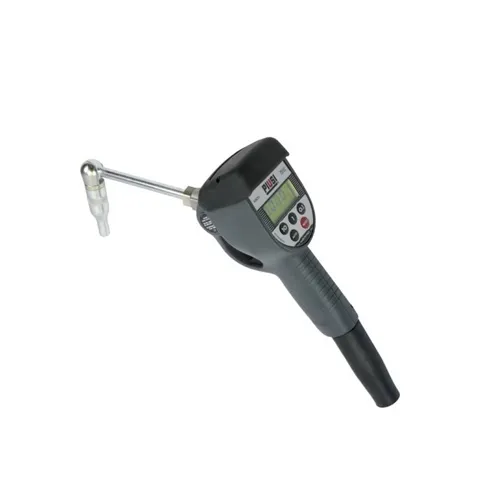

Preset Metered Oil Gun – 4107
Without a metered gun, there is no way to accurately measure oil quantity without creating environmental pollution or workplace safety risks — and metered guns are the solution. In all situations where you need to precisely determine the volume of fluid transferred or calculate the correct amount of oil for an engine, metered guns offer durability, ease of use, and high reliability. With the 4107 Preset Metered Oil Gun, when the pre-selected quantity is reached, the gun automatically closes and stops dispensing.
- Ergonomic
Grip - Controlled
Dispensing - Easy
Maintenance - Robust
Design
Precise Dispensing
at the Point of Use
Without a metered gun, there is no way to accurately measure oil quantity without creating environmental pollution or workplace safety risks — and metered guns are the solution. In all situations where you need to precisely determine the volume of fluid transferred or calculate the correct amount of oil for an engine, metered guns offer durability, ease of use, and high reliability. With the 4107 Preset Metered Oil Gun, when the pre-selected quantity is reached, the gun automatically closes and stops dispensing.
- Auto-stop
Preset - Zero
Overfilling - ±0.5%
Accuracy - 2000 cSt
Viscosity
Technical Specifications
| Model | 4107 |
|---|---|
| Operating Pressure | 70 bar |
| Inlet | 1/2" BSP |
| Outlet | Drip-Free Nozzle Tip |
| Accuracy | ±0.5% |
| Max. Viscosity | 2000 cSt |
| Battery | 1.5 V |
| Weight | 1.90 kg |
| Warranty | 24 Months |
Materials
| Body | Die-cast Aluminium or Zinc Alloy |
|---|---|
| Trigger & Lever | Steel, zinc-plated |
| Seals | NBR / PU |
| Outlet Tube | Steel, rigid or flexible |
| Meter (metered models) | Oval-gear, LCD display |
| Coupler / Nozzle | Hardened Steel, 4-jaw |
Applications
- Bearing and joint lubrication
- Gearbox and engine oil top-up
- Workshop lubrication stations
- Fleet and plant maintenance
Dimensions
| Type | Length (mm) | Inlet | Outlet | Weight (kg) |
|---|---|---|---|---|
| Grease gun | 330 | ¼" BSP | Hydraulic coupler | 0.9 |
| Oil gunthis model | 300 | ½" BSP | Rigid / flexible nozzle | 0.7 |
| Metered oil gun | 320 | ½" BSP | Rigid / flexible nozzle | 1.1 |
Typical dimensions for the model range; certified dimensional drawings are available on request.
