Tank Oil System – TYS4400

Drum, IBC & Tank Systems

Tank Oil System – TYS4400

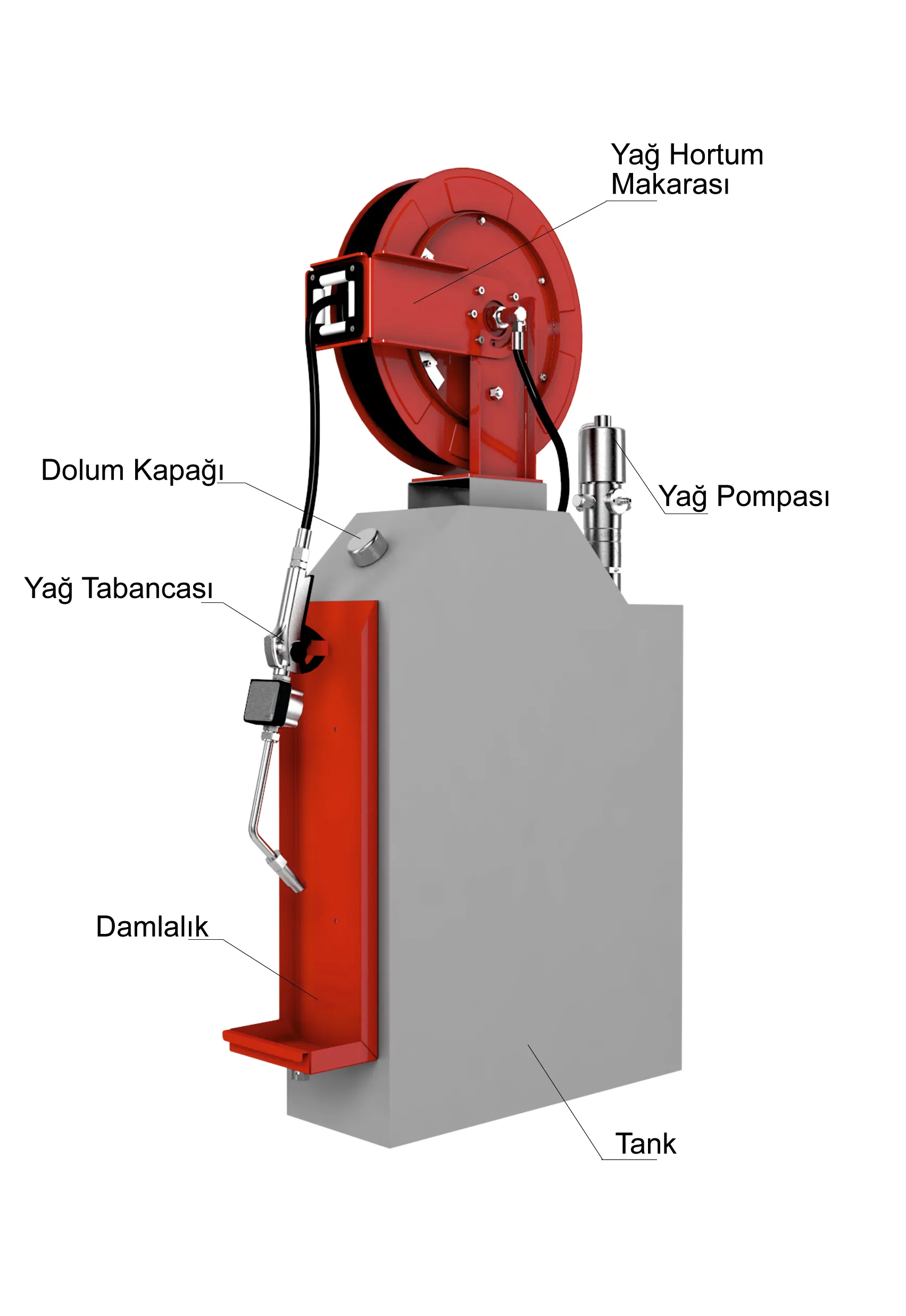

We designed the Tank Oil System for small businesses. Its compact structure saves space and the system holds 208 litres of oil. All equipment is kept together, so there is no need to install oil piping — giving businesses a cost advantage. The TYS4400 consists of 5 main components as standard. You choose your own external oil pump, oil gun and oil hose reel, allowing you to create new combinations.

  • Air
    Operated
  • High
    Pressure Ratio
  • Easy
    Maintenance
  • Robust
    Design

Powerful Lubrication
for Workshop and Industry

We designed the Tank Oil System for small businesses. Its compact structure saves space and the system holds 208 litres of oil. All equipment is kept together, so there is no need to install oil piping — giving businesses a cost advantage. The TYS4400 consists of 5 main components as standard. You choose your own external oil pump, oil gun and oil hose reel, allowing you to create new combinations.

  • Double-Acting
    Piston
  • Continuous
    Duty
  • Complete
    Sets
  • Standard
    Drum Sizes

Technical Specifications

ApplicationFixed dispensing from bulk oil storage tank
PumpPneumatic piston oil pump, 3:1 or 5:1 ratio, wall mounted (indicative)
Deliveryapprox. 18–25 L/min (indicative)
Air supply6–8 bar (indicative)
SuctionSuction hose kit with foot valve for tank connection (indicative)
Hose and gunHose reel with 10 m × 1/2" hose and oil control gun (indicative)
MeteringOptional mechanical or digital meter gun (indicative)
Viscosity rangeUp to SAE 140 (indicative)
MountingWall bracket and reel bracket (indicative)

Materials

Air Motor BodyDie-cast Aluminium
Pump TubeSteel, zinc-plated
Piston & RodHardened Steel, chrome-plated
SealsNBR / PU
Follower Plate & CoverSteel, powder-coated
HoseRubber, steel-reinforced, R2

Delivery Curve

06121824300246810Hose Length (m)Delivery (L/min)
  • 8 bar air
  • 6 bar air
  • 4 bar air
Indicative delivery through a ¼" hose at 4–8 bar air inlet pressure and 20 °C; longer hoses and colder lubricant reduce output.

Applications

  • Vehicle and truck workshops
  • Agricultural and construction machinery service
  • Industrial maintenance departments
  • Mining and quarry equipment
  • Marine and port equipment
  • Centralised lubrication stations
