Cleaning & Washing

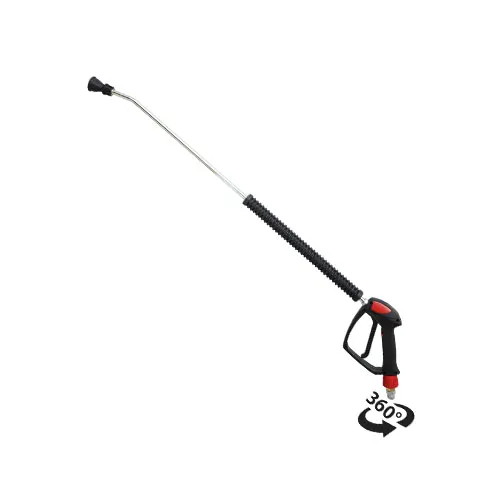

Trigger Wash Gun – 0549
The trigger wash gun features a swivel joint to prevent hose kinking, is extremely lightweight, and its ergonomic handle prevents fatigue. It delivers maximum performance even in the toughest conditions.
- High
Pressure - Chemical
Resistant - Ergonomic
Grip - Robust
Design
Industrial Cleaning
and Washing Equipment
The trigger wash gun features a swivel joint to prevent hose kinking, is extremely lightweight, and its ergonomic handle prevents fatigue. It delivers maximum performance even in the toughest conditions.
- Hot Water
Capable - Standard
Threads - Adjustable
Spray - Long
Service Life
Technical Specifications
| Model | 0549 |
|---|---|
| Operating Pressure | 150 – 310 bar |
| Maximum Pressure | 350 bar |
| Maximum Flow Rate | 45 L/min |
| Maximum Temperature | 160 °C |
| Warranty | 24 months |
Materials
| Body | Brass or Stainless Steel |
|---|---|
| Grip | Glass-fibre reinforced polymer |
| Seals | NBR / FKM |
| Lance | Stainless Steel |
| Tank (washing machines) | Steel sheet, powder-coated |
Applications
- Vehicle wash bays
- Industrial parts cleaning
- Food and beverage plants
- Marine and offshore cleaning
Dimensions
| Type | Inlet | Length (mm) | Weight (kg) |
|---|---|---|---|
| Trigger wash gunthis model | ⅜" BSP F | 240 | 0.6 |
| Triggerless gun | ⅜" BSP F | 220 | 0.5 |
| Foam / liquid spray gun | ¼" BSP | 260 | 0.8 |
| Telescopic foam gun | ¼" BSP | 900–1,800 | 1.6 |
| Parts washer 80 L | — | 1,000 × 600 × 1,000 | 45 |
Typical dimensions for the model range; certified dimensional drawings are available on request.
Downloads
Related Products

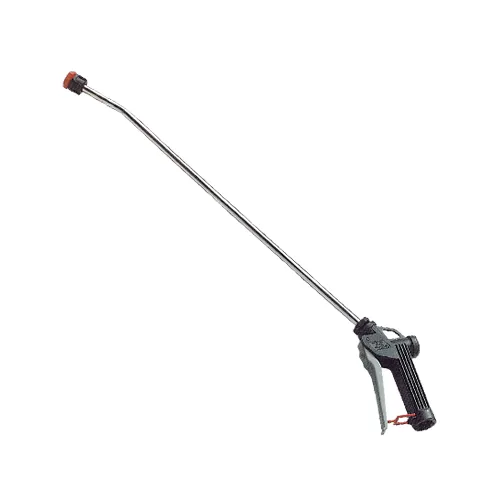

Foam Spray GunModel 7442Liquid Spray GunModel 7441
Parts Washing Machine 80 LModel 9200

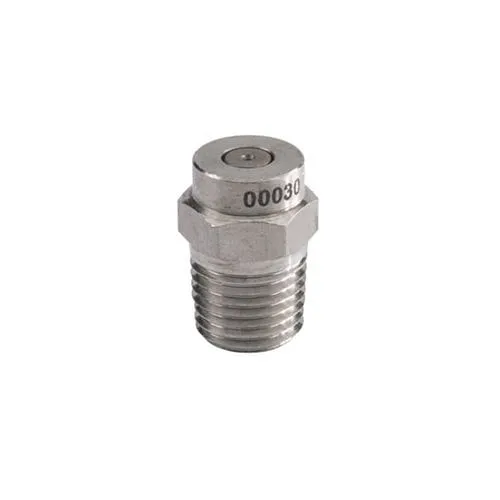

Pressure Washer Gun NozzleCleaning & Washing
Tarus 7441 Liquid Spray GunCleaning & WashingTarus 7442 Foam Spray GunCleaning & Washing

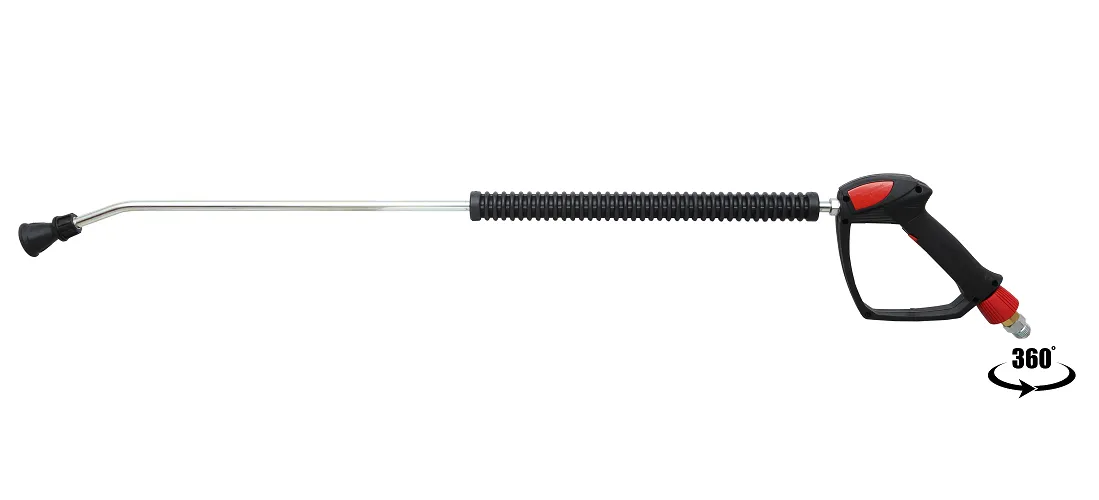

Tecomec 0543 Triggerless Pressure Wash GunCleaning & Washing

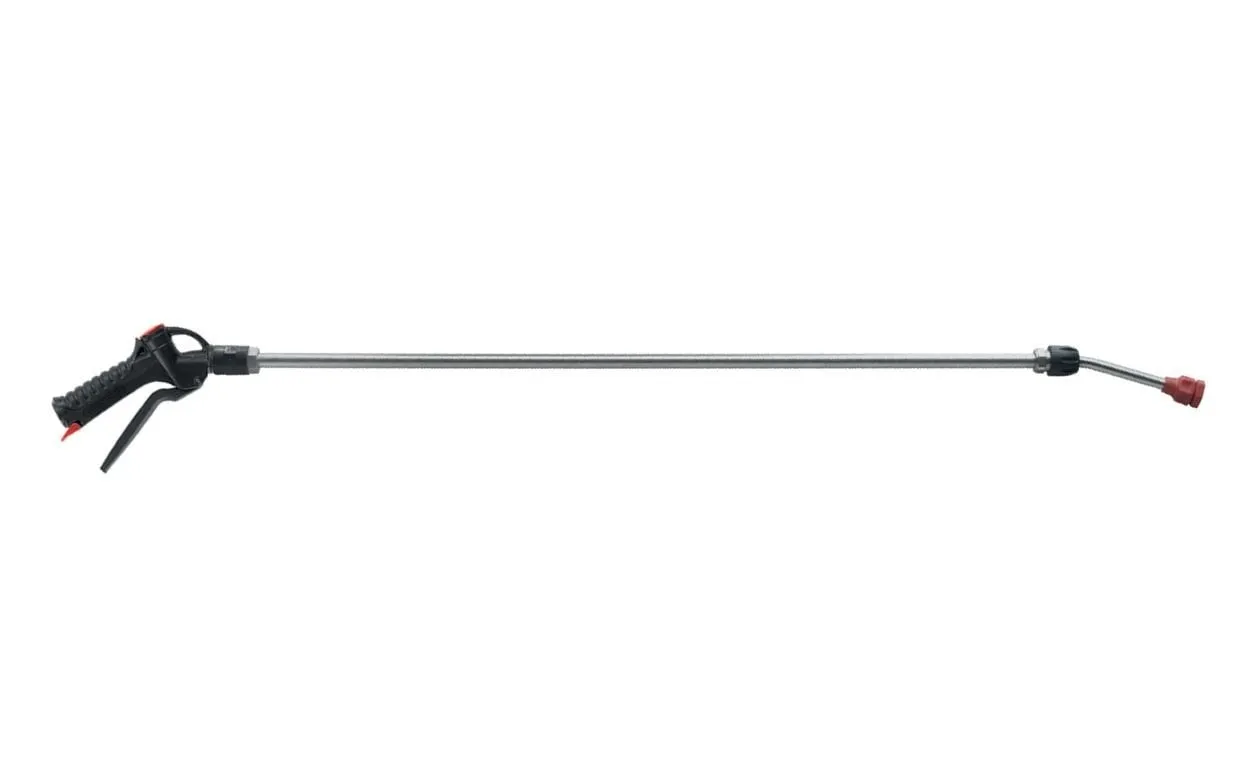

Tecomec 7443 Telescopic Foam Spray GunCleaning & Washing
