Wagner Wildcat 18-40

Airless Paint Machines

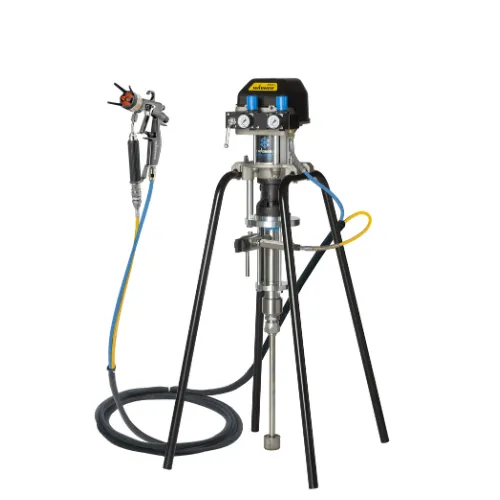

Wagner Wildcat 18-40

The WAGNER Wildcat 18-40 is a professional-grade airless paint machine designed for high-output coating applications. Operating without compressed air, it delivers paint at high pressure through a precision pump system — providing fast, even, and consistent coverage across large industrial, marine, and construction surfaces.

  • Airless
    Spray
  • High
    Pressure
  • Easy
    Maintenance
  • Wide
    Application

High-Output Airless
Spraying for Professionals

The WAGNER Wildcat 18-40 is a professional-grade airless paint machine designed for high-output coating applications. Operating without compressed air, it delivers paint at high pressure through a precision pump system — providing fast, even, and consistent coverage across large industrial, marine, and construction surfaces.

  • WAGNER
    Engineering
  • High-pressure Airless
    System
  • Fast, Even
    Coverage
  • Low Paint
    Waste

Technical Specifications

Brand / ModelWAGNER Wildcat 18-40
Operating PrincipleAirless (high-pressure) spray
Maximum Pressure200 – 300 bar
Flow Rate1.5 – 6 l/min
Motor Power800 – 3000 W
Voltage220V / 380V
Inlet Diameter½" – 1"
Hose Length10 – 30 m
Nozzle Range0.015 – 0.035 inch
Weight20 – 60 kg

Materials

Fluid SectionStainless Steel with Tungsten Carbide balls and seats
Piston RodChrome-plated Steel
PackingsPTFE / UHMW-PE, leather
Frame / CartSteel, powder-coated
HoseHigh-pressure nylon, 250–500 bar
GunForged Aluminium, Tungsten Carbide tip

Output Curve

02468060120180240300Spray Pressure (bar)Material Output (L/min)
  • Tip 0.035"
  • Tip 0.027"
  • Tip 0.021"
  • Tip 0.015"
Indicative output by tip size; actual output depends on material viscosity and hose length.

Dimensions

Model ClassLength (mm)Width (mm)Height (mm)Weight (kg)
Portable electric48038044018–25
Cart electric64052076035–60
Pneumatic 28:1 – 30:16005601,05045–55
Pneumatic 68:17006201,25075–95

Typical dimensions for the model range; certified dimensional drawings are available on request.
