Air Motors & Mixers

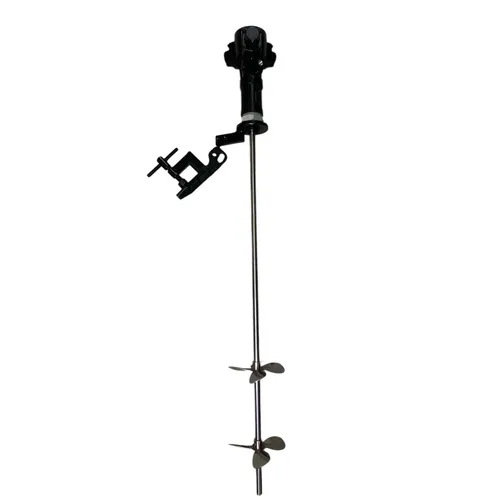

Drum Type Pneumatic Mixer
Industrial mixer motors and equipment are critical machines used to mix, dissolve or stabilise liquids, gels, paints, chemicals and other fluids homogeneously. They are indispensable in paint, chemical, food and manufacturing plants for improving product quality and optimising process times.
- Variable
Speed - ATEX
Option - Drum
Mountable - Robust
Design
Industrial Mixing
for Paints and Chemicals
Industrial mixer motors and equipment are critical machines used to mix, dissolve or stabilise liquids, gels, paints, chemicals and other fluids homogeneously. They are indispensable in paint, chemical, food and manufacturing plants for improving product quality and optimising process times.
- Various Mounting
Options - Durable Motor
Construction - Adjustable Speed
Control - Various Mixer
Accessories
Technical Specifications
| Motor Power | 0.25 kW – 7.5 kW |
|---|---|
| Speed Range | 100 – 1500 rpm |
| Torque | 10 – 120 Nm |
| Mounting Type | Flange or clamp mounting |
| Shaft Diameter | 8 mm – 25 mm |
| Operating Environment | Liquids, chemicals and dense materials |
Materials
| Drive | Air motor (ATEX) or electric motor |
|---|---|
| Shaft & Propeller | Stainless Steel AISI 304 / 316 |
| Clamp / Bung Adapter | Cast Aluminium |
| Stand (stand-mounted) | Steel, powder-coated |
| Guards | Steel |
Applications
- Paint production and mixing facilities
- Chemical industry and process lines
- Food and beverage production
- Cosmetics production lines
- Production of pigmented and additive-blended liquids
- Laboratory mixing applications
Dimensions
| Type | Shaft Length (mm) | Propeller Ø (mm) | Speed (rpm) | Weight (kg) |
|---|---|---|---|---|
| Bung-mount mixer | 800 | 100 | 300–3,000 | 6 |
| Clamp-mount mixer | 900 | 120 | 300–3,000 | 8 |
| Stand-mounted mixer | 1,000 | 150 | 100–1,500 | 35 |
Typical dimensions for the model range; certified dimensional drawings are available on request.
